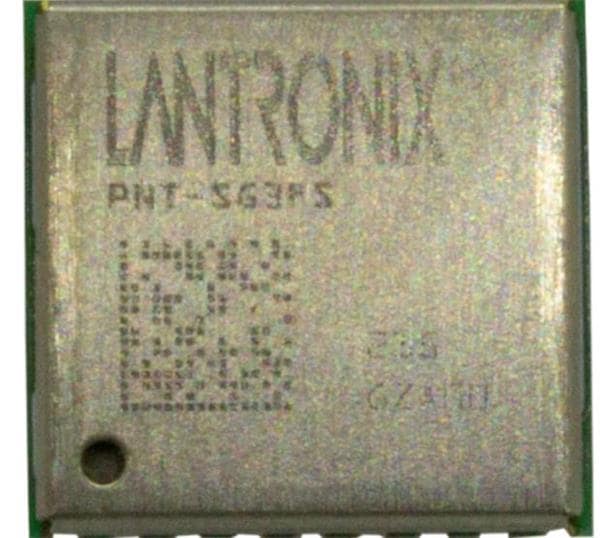

Lantronix PNT-SG3FS-CT GPS Modules GNSS Module - Low power flash-based 48-channel GPS Galileo Glonass BeiDou QZSS Receiver Module (50pc cut tape)
Manufacturer: Lantronix Model: PNT-SG3FS-CT - Contact
Frequency: 10 Hz
Dimensions: 10.1 mm x 9.7 mm
Interface Type: I2C, UART
Mounting Style: SMD/SMT
Moisture Sensitive: Yes
Supply Voltage - Max: 3.3 V
Supply Voltage - Min: 1.8 V
Acquisition Sensitivity: - 163 dBm
Protocol - GPS, GLONASS: GNSS
Operating Supply Voltage: 1.8 V, 3.3 V
Horizontal Position Accuracy: 1.5 m
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Time To First Fix - Cold Start: 32 s
