Specifications
Flow range: 0.0001～41 mL/min
Speed range: 0.1-150 rpm
Speed resolution: 0.1-100 rpm, 0.1 rpm resolution; 100-150 rpm, 1 rpm resolution
Speed accuracy: 0.5%
Power supply: AC 100-240V, 50Hz/60Hz
Power consumption: < 30W
External logic level control signal: 5V, 12V (standard), 24V (optional).
External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional)
Communication interface: RS485 MODBUS
Operating condition: Temperature 0~40°C; Relative humidity <80%
IP grade: IP31
Dimensions (L x W x H): 261 x 180 x 197 mm (10.2 x 7.1 x 7.8 inch)
Weight: 4.5 kg (10 lbs)
| Drive type | Pump head | CH | Tubing size (mm) | Flow rate (mL/min) per channel |

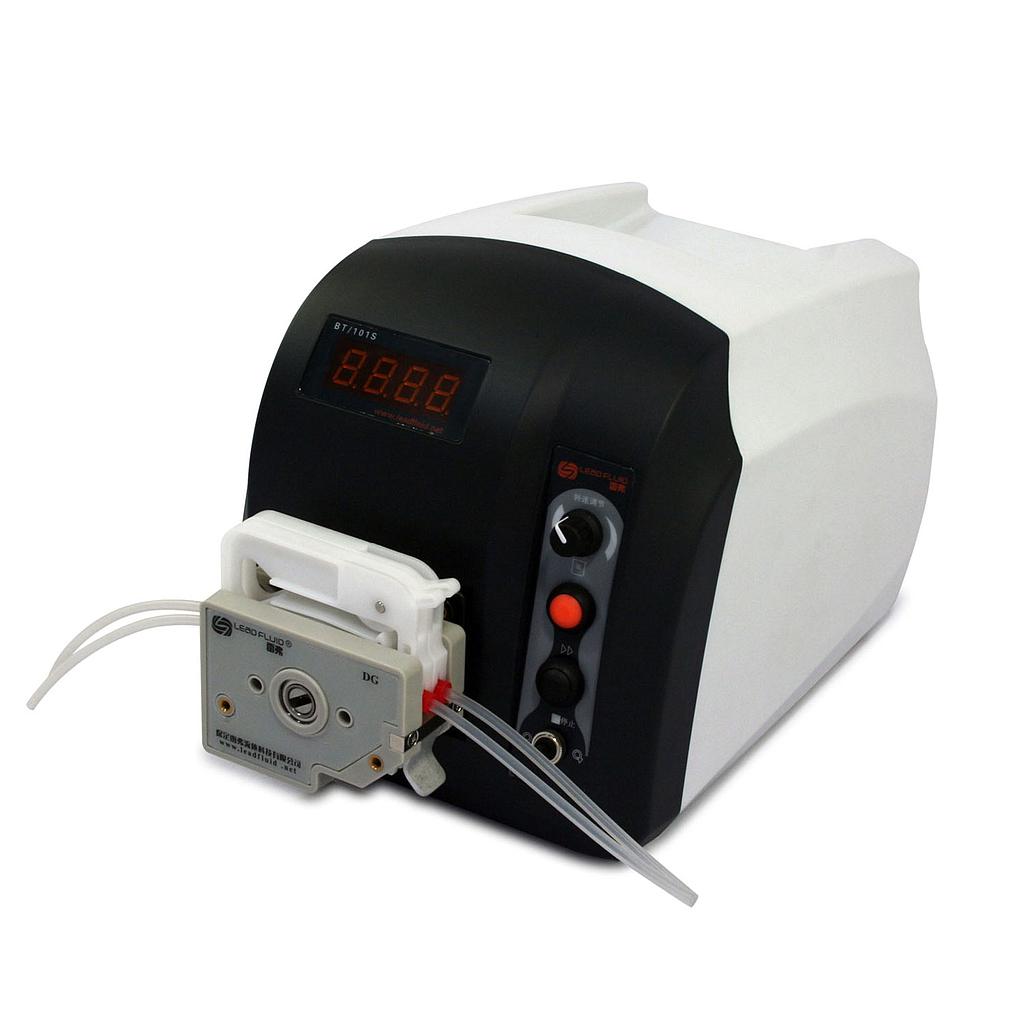

| BT101S (ABS Plastic case) | DG6-1 (6rollers) | 1 | Wall:0.8~1, ID:≤3.17 | 0.0001-49 |
| DG10-1 (10rollers) | 1 | Wall:0.8~1, ID:≤3.17 | 0.0001-41 | |
| DG6-2 (6rollers) | 2 | Wall:0.8~1, ID:≤3.17 | 0.0001-49 | |
| DG10-2 (10rollers) | 2 | Wall:0.8~1, ID:≤3.17 | 0.0001-41 | |
| DG6-4 (6rollers) | 4 | Wall:0.8~1, ID:≤3.17 | 0.0001-49 | |
| DG10-4 (10rollers) | 4 | Wall:0.8~1, ID:≤3.17 | 0.0001-41 | |
| DT10-18 | 1 | 13# 14# , Wall:0.8~1, ID:≤3.17 | 0.0002-82 | |
| DT10-28 | 2 | 13# 14# , Wall:0.8~1, ID:≤3.17 | 0.0002-82 | |
| YZ15 | 1 | 13# 14# 16# 19# 25# 17# | 0.006-420 | |
| YZ25 | 1 | 15# 24# | 0.16-420 | |
| YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 0.006-570 | |
| YT25 | 1 | 15# 24# 35# 36# | 0.006-720 |
