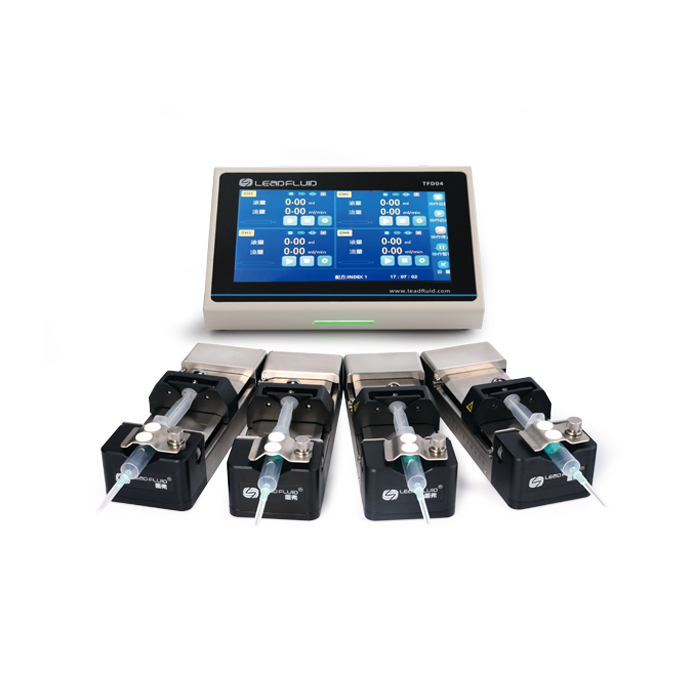

Leadfluid TFD04*ZX01 Laboratory Syringe Pump (5μL～1000μL; 1~8-chanel)

Channel: 1～8 channels，independently control

Syringe size: 0.5μL～60mL（replace the execution unit）

Syringe selection: built-in mainstream brand syringe specifications, support customization

Working mode: infuse, withdraw ,infuse/withdraw, withdraw/infuse

Accuracy: error＜±0.5%（＞30% of pump stroke）

Flow calibration: intelligent guide

Display: 7 inch 65565 color LCD

Operation method: Touch screen

Delay time: 0.1～999 s/min/h

Cycles: 0～9999

Cycles interval time: 0.1～999 s/min/h

Power-down memory: Memorize parameters set before power off

Status signal output: 5V TTL，1 road indicates running status, 1 road indicates direction status

Control signal input: 5～24V Wide voltage, control start, stop and pause

Communication: RS485，support Modbus protocol

Power supply: AC100～240V，50Hz/60Hz

Power consumption: Controller 40W+30W (each execution unit)

Environment: temperature5～40℃ ，relative humidity＜80%

Controller dimension: 200×142×88mm

Controller weight: 2.0kg

ZX01

Syringe: 5μL～1000μL

Flow range: 0.058nL/min～1.587mL/min

Channel: 1～8

Max stroke of pump: 70mm

Max rated thrust: >2kgf，Adjustable thrust

Advance per microstep: 0.198μm/μstep

Linear speed: 0.635μm/min～95.25mm/min

Execution unit dimension: 195×43.5×70mm

Execution unit weight: 0.85 KG
