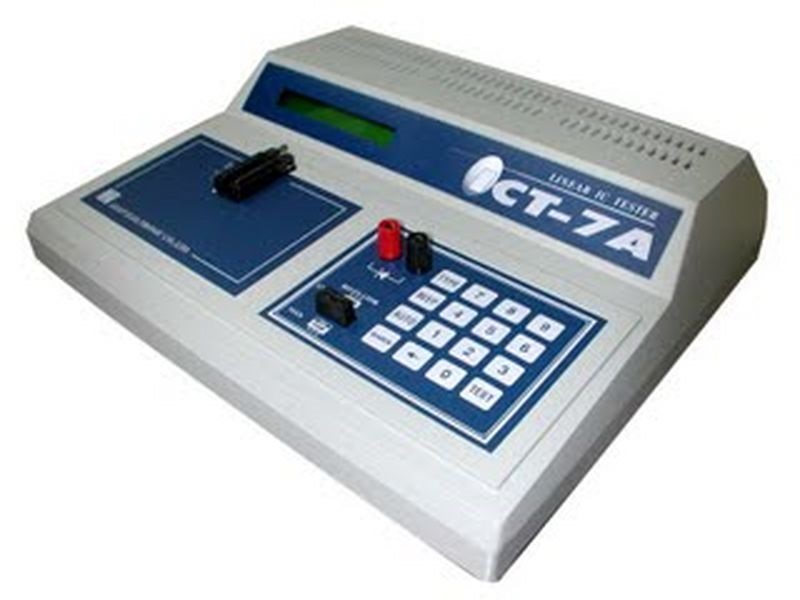

LEAPTRONIX ICT-7A Linear IC Tester

Name: LEAPTRONIX ICT-7A Linear IC Tester
Brand: LEAPTRONIX

ManufacturerLEAPTRONIX(View more products from this manufacturer)

ModelICT-7A

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

- Display: 16 x 1 character LCD
- Power: DC 9V/500mA
- Tester voltage: 5V
- Test Pins: 14 ~ 24Pin
- Dimension: 16cm x 11cm x 4.5cm
- Weight: 340g
- Device Type:
+ Operational Amplifiers
+ Optocoupliers
+ Comparattors
+ VOL Tage Regulators
+ N555 Series, Transistor Array
-Standard Accessories:
+ Main unit x 1
+ User manual x 1
+ DC 9V/500mA power adaptor x 1

Linear IC Tester

Introduction

The new ICT-7A is a desktop IC Tester to determine the quality of linear ICs. It automatically tests IC without keying in IC part number. Built in a 3-PIN regulated socket for user to test Regulator ICs.

Features

Reliable desktop design.
User friendly.
16x1 character LCD display.
Built in 6 function keys and 10 numerical keys.
The following IC series can be tested under +/-5 ~ +/-24V. TIMEER, OP AMP, COMPARATOR, REGULATORS, ZENER, PHOTO COUPLER, COMMUNICATIONS IC, DIRVER, SWITCHING POWER SUPPLY IC.
Automatically identify the unknown ICs and list the part number of the IC that has same function.
Various “BUZZER” sounds to present the test result “FAIL” or “PASS”.

Specification

Button/ Switch：
- 6 Function Keys: TYPE, AUTO, BEEP, TEST, SEARCH, ENTER
- 10 Numeric Keys: 0-9
- Test Socket,Double binding posts
Display：16 character LCD display
Test Socket：One position for 24-pin IC socket
Power：110V AC ~ 220V AC
Frequency Range：50/60 Hz
Buzzer：Various tones for the test result
Dimension：33.5cm x 30cm x 10.5cm
Weight：1.5Kg
Operating Humidity：90％ (non-condensing)
Temperature：+10℃ ~ +40℃

Device Supported

OP(OPERATIONAL AMPLIFIERS,COMPARATORS)
LM101 LM107 LM108 LM113 LM124 LM148 LM158 LM201 LM207 LM208 LM218 LM224
LM248 LM258 LM307 LM308 LM310 LM318 LM324 LM348 LM358 LM1458 LM2900 LM2902
LM2904 LM3900 LMC660 CA358 CA3130 CA3140 CA3160 CA3240 CA3260 CA3401 TL022 TL061
TL062 TL064 TL071 TL072 TL074 TL081 TL082 TL084 TL094 MC3303 MC3403 MC3503
MC34004 NE5532 NE5534 LF347 LF351 LF353 LF355 LF356 LF357 LF411 LF412 ICL7611
ICL7621 ICL7641 ICL7642 AD648 AD711 AD712 LT1013 LT1014 RC4558 uA741 uA747 uA748
OP07 OP27 OP37 OP42 OP90 OP97 OP290 OP490 TLC252 TLC272 LP124 LP324
HA17324 uPC451 C4082

COMPARATTORS
LM139 LM193 LM239 LM293 LM339 LM393 LM2901 LM2903 LM3302 LP239 LP339 LP2901
TLC339 TLC393

OPTO (OPTOCOUPLERS)
4N25 4N26 4N27 4N28 4N29 4N32 4N33 4N35 4N36 4N37 4N38 4N45
4N46 CNY75 H11A1 H11B1 H11D1 H11D2 H11D3 H11D4 K827P K847P MCT2 PC817
PC827 PC837 PC847 TIL111 TIL116

VOLTAGE REGULATORS
uA7805..(LM2930-5.0,LM2931-5.0,LM2940CT-5.0)
uA7806 uA7808 uA7809 uA7810 uA7812 uA7815 uA7818 uA7824 uA7905 uA7908 uA7912 uA7915
uA7924 LM217 LM317 Zener

REG.(VOL TAGE REGULATORS)
NE555 NE556 TLC555 TLC556 4016 4066 LM723

TRANSISTOR ARRAY
ULN2001 ULN2003 ULN2004 ULN2005

Standard Accessories
