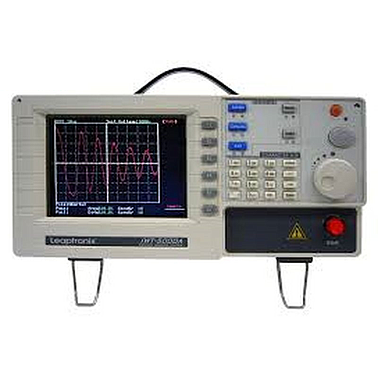

LEAPTRONIX IWT-5000A Impulse Winding Tester (5000V)

Name: LEAPTRONIX IWT-5000A Impulse Winding Tester (5000V)
Brand: LEAPTRONIX

ManufacturerLEAPTRONIX(View more products from this manufacturer)

ModelIWT-5000A

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

IWT-5000A winding tester is a coil (such as voltage transformer, inductance, motor)
Testing Voltage: 200V~5000V (±3%)
Output Energy: 0.25J (Max)
Inductance Range Of Test Coil: 10μH and above
Sampling Rate: 8bit / 10ns (100MHz)
Sampling Memory Depth: 5000 Byte
Input Resistance: 10MΩ
Display Measure: 5.6 inch Colored LCD (320 x 234)
Comparison Measures:
Area Size Comparison, DiffZone Comparison, Corona Amount, Comparison Corona Number Comparison
Storage Wave-forms: 360 Sets of wave-forms
Comparison Output: Pass/Fail, beeping
Communication: RS-232, I/O, USB 2.0
Temperature: 25℃ ~ 40℃
Power: 110V/220V AC
Frequency Range: 50/60Hz
Dimension: 31cm x 15cm x 18cm
Weight: 5.4Kg
Standard Accessories:
Main unit x1
High voltage test line x1
AC power cord x1
USB cable x1
RS-232 Cable x1
CD x1 (Driver and user manual are include)
RS-232 to USB cable x1

Impulse Winding Tester

Introduction

IWT-5000A winding tester is a coil (such as voltage transformer, inductance, motor) testing instrument that tests self-insulating property of the coil. The influences of winding materials, magnetic materials, and framework, also extra fabrication decreases the insulating property of coil layers along with the jumpers and jacks.

The IWT-5000A adopts the technology of high-speed sampling rate to store the sample waveform of the standard (master) coil in the instrument. By comparing the waveform results of the test coil to the master, the defect in the DUT can be found easily. Moreover, the IWT-5000A judges the quality of the testing coil according to the parameter set by the user.

Features

With 200V~5000V programmable impulse voltage, it is capable of low-energy testing, without damaging the coil.
Provide high-speed sampling rate of 100MHz, which enhances the testing ability for partial discharges.
320 x 234 color LCD display clearly for the user to view waveform and test results.
Provide user-friendly operation interface.
Low inductance during impulse testing, minimum to 10uH.
Provide 4 kinds of detection modes: AreaSize Comparison, DiffZone Comparison, Corona Amount Comparison, and Corona Number Comparison.
The comparative result shows Pass/Fail directly, informing operators the detect test result within a short period of time.
Offer measurement functions for voltages, timing and frequencies, which provide user a carry-out analysis in detail.
Able to save 360 sets of standard waveform result of the coil for users to download and implement into testing.
Provide RS-232 to PC connection. Just using standard text command, you can writing control program and data for communication easily. Its the best way to set up the testing system for mass production.
To make analysis easier, IWT-5000A offers USB 2.0 interface to connect with PC for users to upload or download the parameters of waveforms results.
Provide the control function for external I/O, such as the Handler adopts standard D-SUB 15-pin connector for connecting with automatic or semi-auto testing system.
Provide self-calibration function. No need to send back for the vendor calibration. Saving time and cost.

Specification

Testing Voltage: 200V~5000V (±3%)
Output Energy: 0.25J (Max)
Inductance Range Of Test Coil: 10μH and above
Sampling Rate: 8bit / 10ns (100MHz)
Sampling Memory Depth: 5000 Byte
Input Resistance: 10MΩ
Display Measure: 5.6 inch Colored LCD (320 x 234)
Comparison Measures:
Area Size Comparison, DiffZone Comparison, Corona Amount, Comparison Corona Number Comparison
Storage Wave-forms: 360 Sets of wave-forms
Comparison Output: Pass/Fail, beeping
Communication: RS-232, I/O, USB 2.0
Temperature: 25℃ ~ 40℃
Power: 110V/220V AC
Frequency Range: 50/60Hz
Dimension: 31cm x 15cm x 18cm
Weight: 5.4Kg

PC System Requirement

Operating System: Win 7/ Vista/ XP
To make analysis easier, IWT-5000A offers USB 2.0 interface to connect with PC for users to upload or download the parameters of waveforms results.
Provide the control function for external I/O, such as the Handler adopts standard D SUB 15-pin connector for connecting with automatic or semi-auto testing system.
Provide self-calibration function. No need to send back for the vendor calibration. Saving time and cost.
Provide the convert software for Excel
