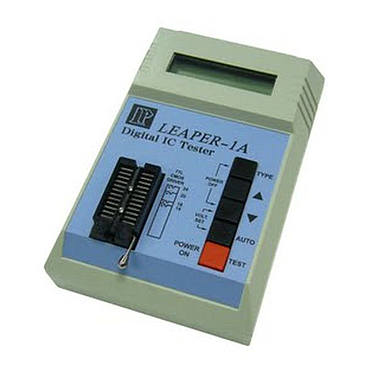

LEAPTRONIX LEAPER1A Handy Digital IC Tester

Name: LEAPTRONIX LEAPER1A Handy Digital IC Tester
Brand: LEAPTRONIX

ManufacturerLEAPTRONIX(View more products from this manufacturer)

ModelLEAPER1A

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Display: 16 x 1 character LCD
Test Pins: 14~24 pin
Power: DC 9V/500mA or 9V Alkaline battery x 2
Dimension: 16cm x 11cm x 4.5cm
Test Voltage: 2.5V / 3.0V / 3.3V / 5.0 VDC
Alarm: Various tones for the test result
Weight: 312g
Device Type
1. 74 Series
2. 40 Series
3. 45 Series
4. Driver
Standard Accessories
Main unit x 1
User manual x 1
DC 9V/500mA power adaptor x 1

Handy Digital IC Tester

Introduction

LEAPER-1A is a protable IC Tester that is especially designed for digital ICs. It has 24-PIN ZIF socket to suit different digital ICs. No PC is required to operate LEAPER-1A, it works complete in stand-alone mode through power adaptor or batteries.

Features

Easy-operating, particularly designed for the digital ICs.
Support low voltage device test.
Voltage range: 2.5V/3.0V/3.3V/5V
Device type:
54/74 xxxx TTL series
40/45/14xxx CMOS series
20xx/28xx Driver IC series
LEAPER-1A also supports other digital ICs which have same logic function as supported digital ICs.
Provide idle mode for saving power.
High-test speed: generally test an IC in 0.6 second.
Small, portable, light and power-saving,usable with batteries.
Display:16 characters in 1 line LCD.

Device Type

74 Series
40 Series
45 Series
Driver

Specification

Display: 16 x 1 character LCD
Test Pins: 14~24 pin
Power: DC 9V/500mA or 9V Alkaline battery x 2
Dimension: 16cm x 11cm x 4.5cm
Test Voltage: 2.5V / 3.0V / 3.3V / 5.0 VDC
Alarm: Various tones for the test result
Weight: 312g
Operating Altitude: up to 5000m
Operating Humidity: 90％ (non-condensing)
Temperature: +5℃~+45℃

Device Supported

74 Serial

7400 7401 7402 7403 7404 7405 7406 7407 7408

7409 7410 7411 7412 7413 7414 7415 7416 7417

7418 7419 7420 7421 7422 7423 7424 7425 7426

7427 7428 7430 7432 7433 7434 7435 7436 7437

7438 7439 7440 7441 7442 7443 7445 7446 7447

7448 7449 7450 7451 7453 74H54 7454 7455

7460 7461 7463 7464 7465 7470 7472 7473 7474

7475 7477 7478 74H78 7480 7481 7482 7483 7484

7485 7486 7487 7489 7490 7491 7492 7493 7494

7495 7496 74105 74107 74109 74110 74111 74112 74113

74114 74116 74125 74126 74128 74132 74134 74135 74136

74137 74138 74139 74140 74141 74142 74143 74144 74145

74147 74148 74150 74151 74152 74153 74154 74155 74156

74157 74158 74159 74160 74161 74162 74163 74164 74165

74166 74168 74169 74170 74173 74174 74175 74176 74177

74178 74179 74180 74181 74182 74183 74184 74185 74189

74190 74191 74192 74193 74194 74195 74196 74197 74198

74199 74230 74231 74240 74241 74242 74243 74244 74245

74246 74247 74248 74249 74251 74253 74257 74258 74259

74260 74265 74266 74273 74274 74276 74279 74280 74283

74289 74290 74293 74295 74298 74299 74322 74323 74347

74348 74350 74351 74352 74353 74363 74364 74365 74366

74367 74368 74373 74374 74375 74377 74378 74379 74382

74386 74390 74393 74395 74399 74412 74425 74426 74445

74447 74465 74466 74467 74468 74490 74518 74519 74520

74521 74522 74533 74534 74539 74540 74541 74563 74564

74574 74573 74576 74580 74597 74620 74621 74622 74623

74638 74639 74640 74641 74642 74643 74644 74645 74646

74647 74652 74654 74668 74669 74670 74682 74683 74684

74685 74688 74689 74795 74796 74797 74798 74804 74805

74808 74810 74811 74821 74827 74832 74841 74874 741000

741002 741003 741004 741005 741008 741010 741011 741020

741034 741035 741036 741244 741245

74H54(749054) 74H78(749078) 40H78(409078)

40 Serial

4000 4001 4002 4006 4007 4008 4009

4010 4011 4012 4013 4014 4015 4016

4017 4018 4019 4020 4021 4022 4023

4024 4025 4026 4027 4028 4029 4030

4031 4032 4033 4035 4038 4040 4041

4042 4043 4044 4048 4049 4050 4051

4052 4053 4054 4056 4060 4063 4066

4067 4068 4069 4070 4071 4072 4073

4075 4076 4077 4078 40H78 4081 4082

4085 4086 4093 4094 4095 4096 4097

4099 40100 40101 40102 40103 40104 40106

40109 40110 40147 40160 40161 40162 40163

40174 40175 40181 40182 40192 40193 40194

40257

45 Serial

4501 4502 4503 4504 4506 4508 4510

4511 4512 4513 4514 4515 4516 4517

4518 4519 4520 4522 4526 4527 4529

4532 4539 4543 4551 4553 4555 4556

4560 4561 4566 4572 4581 4584 4585

Driver

ULN 2001 ULN 2003 ULN 2004 ULN 2005

ULN 2803 ULN 2804

Standard Accessories

Main unit x 1
User manual x 1
DC 9V/500mA power adaptor x 1
