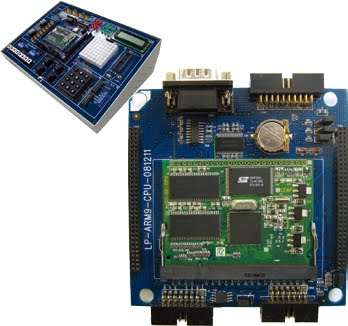

LEAPTRONIX LP-2900 + LP-ARM9-2410-KIT ARM Chip System Design & Experiment Platform

Name: LEAPTRONIX LP-2900 + LP-ARM9-2410-KIT ARM Chip System Design & Experiment Platform
Brand: LEAPTRONIX

ManufacturerLEAPTRONIX(View more products from this manufacturer)

ModelLP-2900 + LP-ARM9-2410-KIT

OriginTaiwan

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Manufacturer: Leaptronix

Model: LP-2900 + LP-ARM9-2410-KIT

Datasheet

ARM Chip System Design & Experiment Platform

Bring You into System & Embedded World

Introduction

LP-2900 + LP-ARM9-2410 utilize ARM9-32bits chip for learning RISC Microprocessor.

It is no need the complex operation system and difficult development process, directly enter CPU command and I/O interface control learning. Let you easily enter SOC and embedded world.

Features

Support Samsung S3C24C10 x 32-bits RISC Microprocessor which is under SARM920T frame.
Use Xilinx Spartan-3E FPGA XC3S250E PQFP208 which contains 250,000 logic gate counts. Let you process ARM+FPGA experiments or topic research.
Modular design, able to change other CUP boards for learning.
Provide BootLoader function, able to use C or Assembly for writing Language, via the cable to download to the LP-2900 platform for experiment and verification.
Able to connect to PC via RS-232 interface. Use the simple terminal program for control and process program download and execute.
Able to download the program and programming on the NOR Flash Memory on the LP-2900 platform for stand-alone operation.
Provide JTAG interface, when writing the program, able to use ADS or RealView for single step trace and debug.
Provide logic analyzer interface, able to view the SPI, I2C, UART and PWM waveform for analysis. If you use Leaptronix LA or PLA, you can view the protocol decoder as well.
If you already have LP-2900, you just purchase LP-ARM9-2410 module for upgrade to ARM9 training kit

Specifications

CPU：SAMUNG S3C24C10x
FPGA：XILINX XC3S250E PQFP208
Communication：RS-232 / JTAG
Power：100V AC~240V AC (Auto-Switching)
Frequency Range：50 / 60Hz
Dimension：32cm x 22.6cm x 3.0 / 8.56cm
Weight：3.5Kg
Operation Altitude：up to 5000m
Operation Humidity：20% ~ 70%(non-condensing)
Operation Temperature：+5˚C ~ +45˚C

Experimental Contents

ARM SOC Unit：
1. Establish development environment and procedure
2. C and Assembly compile and example
3. Boot-loader utility and example
4. SOC peripheral experiment
