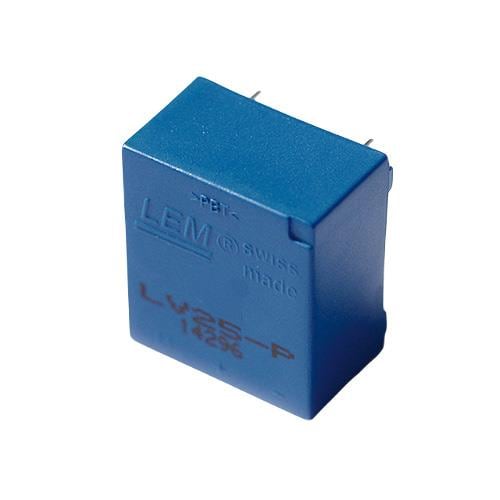

LEM LV 25-P Voltage Transducer Voltage Transducer LV 25-P For the electronic measurement of voltages: DC, AC, pulsed..., with galvanic separation between the primary circuit and the secondary circuit.
Manufacturer: LEM Model: LV 25-P - Contact
Width: 26 mm
Height: 16.4 mm
Length: 29.2 mm
Accuracy: 0.9 %
Output Type: Digital, Analog
Sensor Type: Closed Loop
Unit Weight: 22 g
Response Time: 40 us
Current Rating: 8 mA
Supply Voltage - Max: 15 V
Supply Voltage - Min: 12 V
Operating Supply Voltage: 12 V to 15 V
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: 0 C
