Gain: 2.2 dBi
VSWR: 1.9

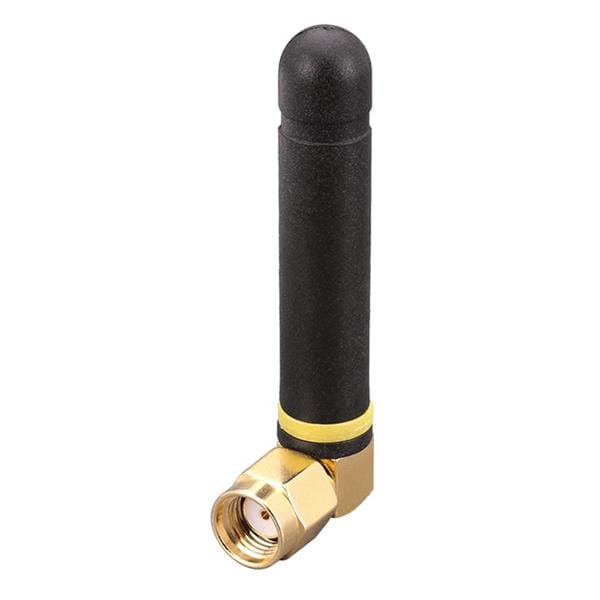

Style: Stubby Right Angle
Width: 17 mm
Length: 46.5 mm
Diameter: 8 mm
Bandwidth: 120 MHz
Impedance: 50 Ohms
Wavelength: 1/4 Wave
Application: Remote Control, Monitoring, Sensing Networks
Unit Weight: 7.158 g
Polarization: Linear
REACH - SVHC: Details
Mounting Style: Panel Mount
Electrical Type: Monopole
Number of Bands: 1 Band
Center Frequency: 916 MHz
Mechanical Style: Helical
Ground Plane Size: 102 mm x 102 mm
Maximum Frequency: 970 MHz
Minimum Frequency: 850 MHz
Termination Style: Connector
Protocol - Sub GHz: RFID, ISM
Antenna Connector Type: RP-SMA Male
Protocol - WiFi - 802.11: LoRaWAN, Sigfox
Maximum Operating Temperature: + 90 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS
