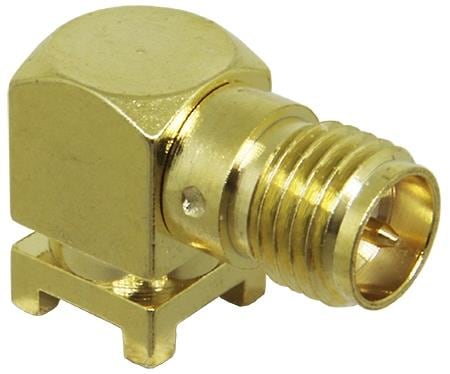

Linx Technologies - TE Connectivity CONREVSMA002-SMD-G PCB Connectors RP-SMA Female Right Angle SMD-Gold
Manufacturer: Linx Technologies - TE Connectivity Model: CONREVSMA002-SMD-G - Contact
Gender: Jack (Pin)
Polarity: Reverse
Impedance: 50 Ohms
RF Series: RP-SMA
Body Style: Right Angle
Body Finish: Gold
Orientation: Right Angle
Unit Weight: 3.891 g
Body Material: Brass
Mating Cycles: 500 Min
Insertion Loss: 0.06 dB max
Mounting Style: SMD/SMT
Contact Plating: Gold
Contact Material: Brass
Maximum Frequency: 12.4 GHz
Termination Style: Solder
Coupling Mechanism: Threaded
Contact Termination: Solder
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
