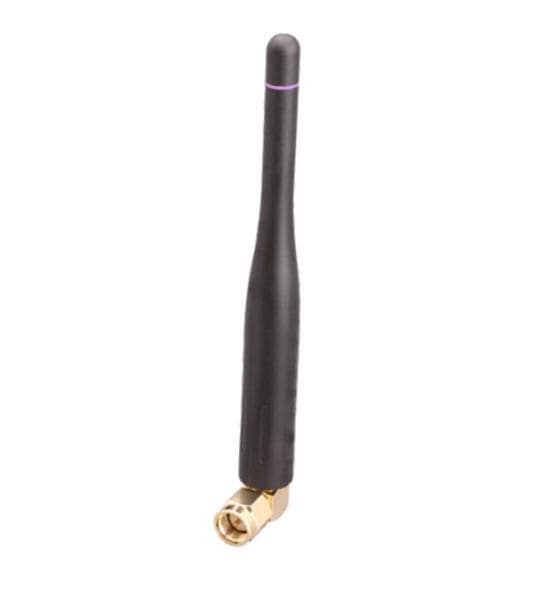

Linx Technologies - TE Connectivity ANT-2.4-CW-RCL-SMA Passive Antenna Antenna 1/2 Wave R-Angle 2.4GHz SMA
Manufacturer: Linx Technologies - TE Connectivity Model: ANT-2.4-CW-RCL-SMA - Contact
Gain: 2.3 dBi
VSWR: 1.5
Style: RA Straight
Width: 18.7 mm
Length: 97.7 mm
Diameter: 10.5 mm
Bandwidth: 120 MHz
Impedance: 50 Ohms
Wavelength: 1/2 Wave
Power Rating: 5 W
REACH - SVHC: Details
Mounting Style: Panel Mount
Electrical Type: Dipole
Number of Bands: 1 Band
Center Frequency: 2.4 GHz
Mechanical Style: Whip
Maximum Frequency: 2.485 GHz
Minimum Frequency: 2.4 GHz
Termination Style: Connector
Protocol - Sub GHz: ISM
Antenna Connector Type: RP-SMA Male
Protocol - WiFi - 802.11: WiFi
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 20 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
