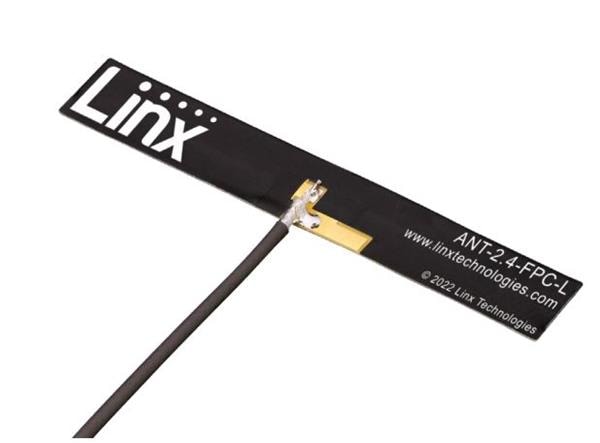

Linx Technologies - TE Connectivity ANT-2.4-FPC-LH100M4 FPC Antenna 2.4 GHz FPC antenna, 45x7mm, orthogonal cable egress, 100mm cable, MHF4
Manufacturer: Linx Technologies - TE Connectivity Model: ANT-2.4-FPC-LH100M4 - Contact
Gain: 6.1 dBi
VSWR: 1.4
Style: T-Bar Flex
Width: 7.2 mm
Height: 0.1 mm
Length: 45.2 mm
Impedance: 50 Ohms
Cable Type: 1.13 mm Coax
Wavelength: 1/2 Wave
Cable Length: 100 mm
Polarization: Linear
Power Rating: 2 W
Mounting Style: Adhesive Mount
Electrical Type: Dipole
Number of Bands: 1 Band
Mechanical Style: PCB Trace
Maximum Frequency: 2.5 GHz
Minimum Frequency: 2.4 GHz
Termination Style: Connector
Antenna Connector Type: MHF4 Plug
Protocol - WiFi - 802.11: WiFi
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
