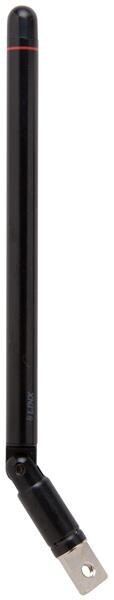

Linx Technologies - TE Connectivity ANT-433-PW-RA Passive Antenna Perm Mnt Swvl Angle 1/4 Wave Whip 433MHz

Gain: - 0.7 dBi

VSWR: 2

Style: Tilt/Swivel

Length: 131.5 mm

Diameter: 7 mm

Bandwidth: 20 MHz

Impedance: 50 Ohms

Wavelength: 1/4 Wave

Application: ISM, Remote Control, Alarms, Security Systems

Unit Weight: 14.493 g

Polarization: Linear

REACH - SVHC: Details

Mounting Style: Screw Mount

Electrical Type: Monopole

Number of Bands: 1 Band

Center Frequency: 433 MHz

Mechanical Style: Whip

Ground Plane Size: 62.23 mm x 100.33 mm

Maximum Frequency: 443 MHz

Minimum Frequency: 413 MHz

Termination Style: Screw

Protocol - Sub GHz: ISM

Protocol - WiFi - 802.11: LoRaWAN, WiFi, WLAN

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM
