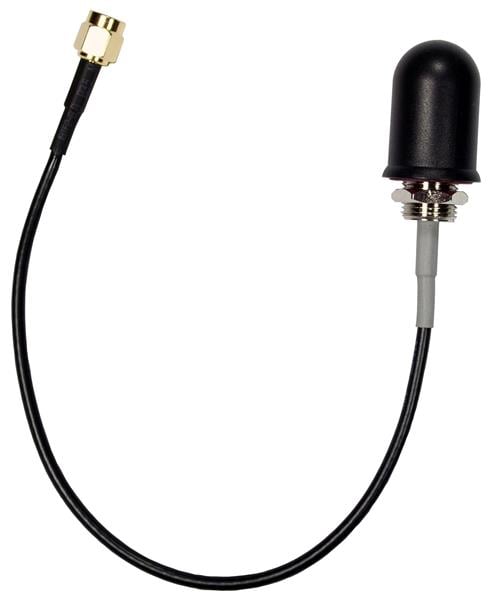

Linx Technologies - TE Connectivity ANT-DB1-WRT-MON-RPS Passive Antenna Dual 2.4GHz/5.8GHz Dual 2.4GHz/5.8GHz

Gain: 1 dBi, 2.8 dBi

VSWR: 2

Style: Mini Dome

Length: 35.5 mm

Diameter: 19 mm

Bandwidth: 100 MHz, 150 MHz

Impedance: 50 Ohms

Cable Type: 216 mm RG174

Wavelength: 1/4 Wave

Application: WiFi, Bluetooth, Zigbee, Thread, 802.15.4, 802.11

Unit Weight: 28.082 g

Cable Length: 216 mm

Polarization: Linear

Power Rating: 5 W

Mounting Style: Direct / Permanent Mount

Electrical Type: Monopole

Number of Bands: 2 Band

Center Frequency: 2.45 GHz, 5.8 GHz

Mechanical Style: Round

Ground Plane Size: 102 mm x 102 mm

Maximum Frequency: 5.875 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: RP-SMA Male

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN, WiMAX

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
