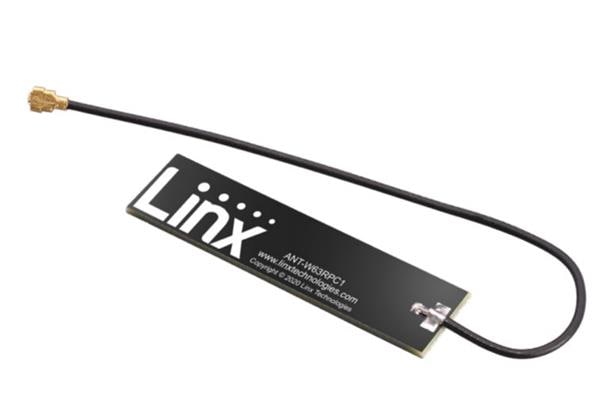

Linx Technologies - TE Connectivity ANT-W63RPC1-MHF4-100 Passive Antenna Antenna WIFI6 2.4/5/6 GHz RPC MHF4 100

Gain: 6.1 dBi

VSWR: 2.1

Style: I-Bar

Width: 11 mm

Height: 1.3 mm

Length: 43 mm

Impedance: 50 Ohms

Cable Type: 100 mm RF1.13

Wavelength: 1/2 Wave

Application: Wireless Applications, U-NII, ISM Applications, IoT Devices, Smart Home Networking, Sensing, Remote Monitoring

Cable Length: 100 mm

Polarization: Linear

Power Rating: 5 W

Mounting Style: Adhesive Mount

Electrical Type: Embedded Monopole

Number of Bands: 3 Band

Center Frequency: 2.4 GHz, 5 GHz, 6 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 7.125 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM, U-NII

Antenna Connector Type: MHF4

Protocol - WiFi - 802.11: 802.11 b/g/n/ac/ax, WiFi 4, WiFi 5, WiFi 6, WiFi 6E

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/4G/5G, Cellular (NBIoT, LTE)

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
