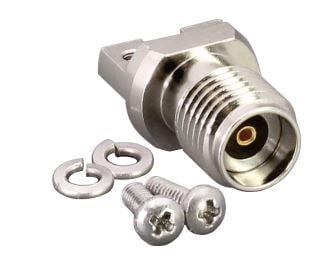

Linx Technologies - TE Connectivity CON292003 Connectors 2.92 mm Connector Jack, Edge Mount, 50 Ohm, Gold
Manufacturer: Linx Technologies - TE Connectivity Model: CON292003 - Contact
Gender: Jack (Socket)
Polarity: Standard
Frequency: 0 Hz to 40 GHz
Impedance: 50 Ohms
RF Series: 2.92 mm
Body Style: Edge Mount
Orientation: Straight
Body Material: Stainless Steel
Mating Cycles: 500 Cycle
Insertion Loss: 0.1 dB
Mounting Style: PCB Mount
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 40 GHz
Minimum Frequency: 0 Hz
Termination Style: Solder
Coupling Mechanism: Threaded
Insulation Resistance: 5 GOhms
