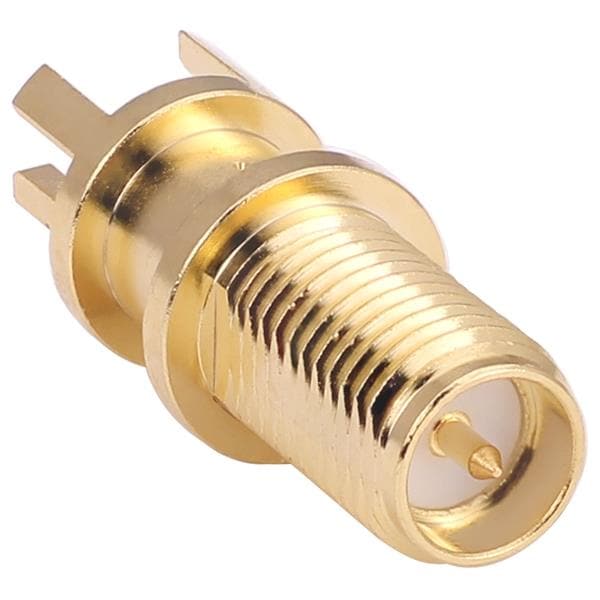

Gender: Jack (Pin)
Polarity: Reverse
Impedance: 50 Ohms
RF Series: RP-SMA
Body Style: Edge Mount
Body Finish: Gold
Orientation: Straight
Unit Weight: 4.198 g
Body Material: Brass
Mating Cycles: 500 Cycle
Insertion Loss: 0.04 dB max
Mounting Style: Edge Launch
Voltage Rating: 500 V
Contact Plating: Gold
Contact Material: Brass
Maximum Frequency: 18 GHz
Termination Style: Solder
Coupling Mechanism: Threaded
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
