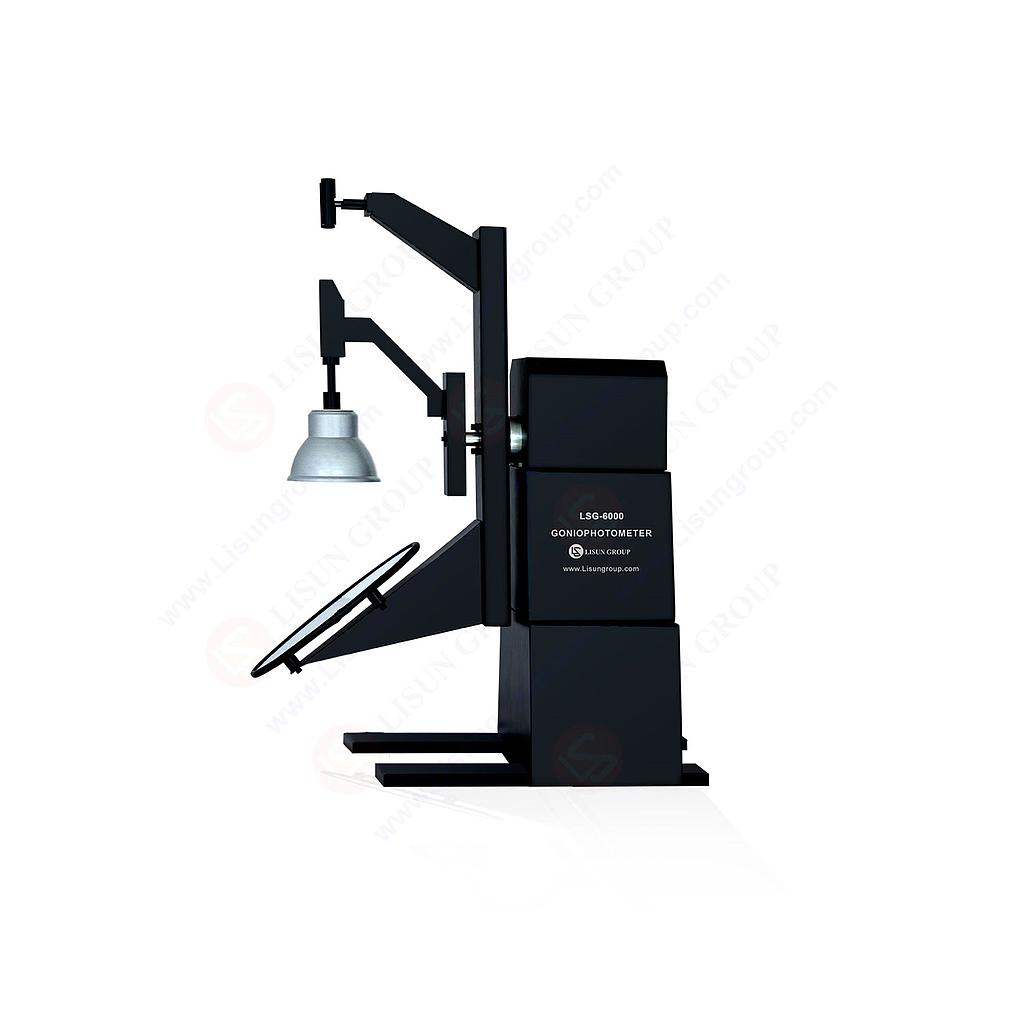

Lisun LSG-6000 Moving Detector Goniophotometer (Mirror Type C, 0.001lx~99,999lx, Φ 1400*500mm)
Manufacturer: Lisun Model: LSG-6000 Origin: China - Contact
• The luminaire under test rotates around the mirror with an angle of (γ) ±180° (or 0-360°) and the luminaire rotates around itself with an angle of (C) ±180° (or 0-360° ).
• The accuracy of angle: 0.05°, Resolution of angle: 0.001°
• Accuracy of photo detector: Constant temperature photo detector DIN5032-6/CIE pub1. No. 69 Class L
• LISUN goniophotometer software can export CIE, IES, LDT and other format files. These kinds of format files can be used via other illumination and luminaire design software such as DiaLux.
• Connect the goniophotometer to PC via USB cable. English version software can run on Win7, Win8 or Win10
Measure Non-Flood Lamp: Φ 1400*500mm, 40kg
Measure Flood Lamp: 600*600mm, 40kg
Measure Power (W): 600V/10A, AC/DC
Datasheet
Features:
• The near field detector moves together with the big mirror in a line. The big mirror and the far field detector move synchronously.
• The burning position of the lumainares will be kept without moving at all, and the detector will always sense the light directly from the luminares.
• The rotary motor is from Japan MITSUBISHI MOTORS and the angle decode system is from Germany. They help the goniophotometer rotating smoothly with high accuracy. It is very stable when start and stop.
• The working principles are according to IESNA and CIE. The LSG-6000 completely meet the LM-80, LM-79, LM-75, GB, EN and CIE121-1996 standards.
• Special collimation device with cross laser line help you installing the position of the luminaires under test conveniently and accurately.
