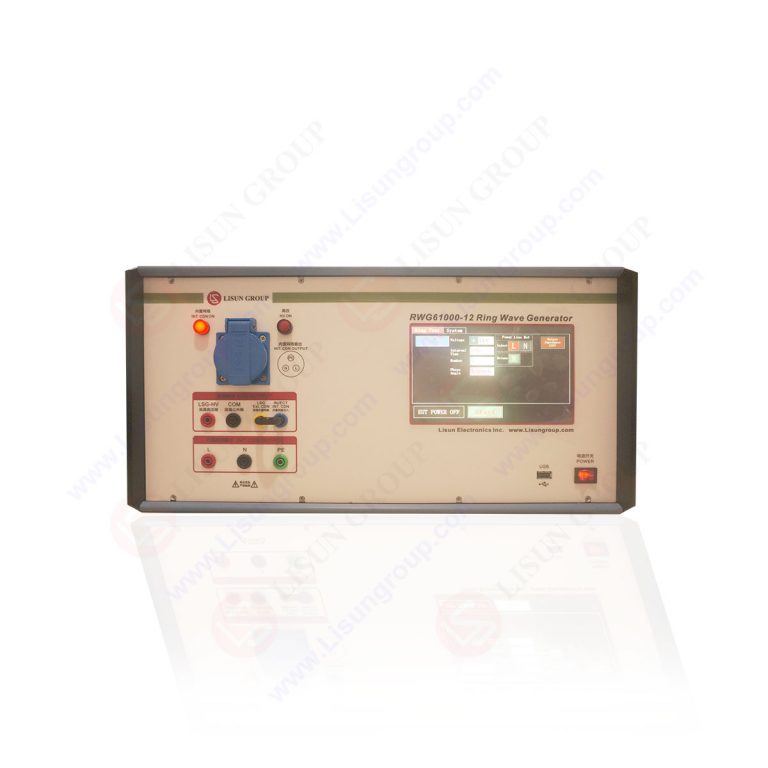

Lisun RWG61000-12 Ring Wave Generator (0~4KV, 16A single phase)
Manufacturer: Lisun Model: RWG61000-12 Origin: China Guarantee: 12 Month - Contact
Output Voltage: 0~4KV
Voltage/Current Wave: Open circuit voltage wave: frontier: 0.5μs±20%. Short circuit current wave: frontier: ≤1μs. Oscillation frequency: 100kHz±10%
Polarity: Positive, Negative or Positive/Negative automatic
Phase Shift: Asynchronous, Synchronization 0°~360° or Specific Angle
Output Impedance: 12Ω, 30Ω
Coupling/Decoupling Network(CDN): Includes a 16A single phase
Working Power: AC220V (Option 110V) ±10%, 50/60Hz
Dimension (DxWxH): 44x45x35cm
Gross Weight: About 28kg
