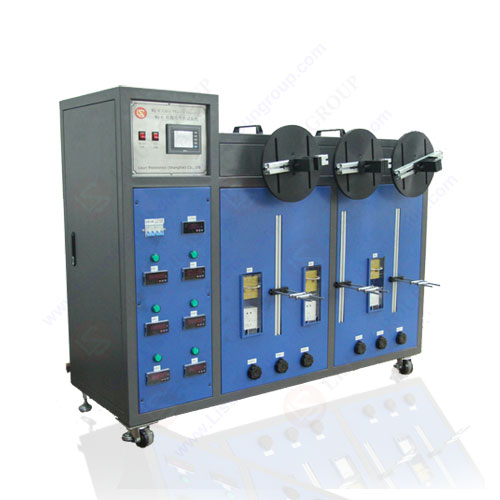

Lisun SW-6 Power Cord Bending Tester (0~540°, AC220V, 6 positions)
Manufacturer: Lisun Model: SW-6 Origin: China Guarantee: 12 Month - Request a Quotation
- Contact
6 Position (For the factory and production line). If necessary can be costumer-sized
• Power supply:AC220V 50/60HZ 12KVA
• Control mode: PLC with touch screen and Servo motor.
• Test Speed: 10~60times/min (Adjustable)
• Test Degree: 0~540° (Adjustable)
• Counter: 0~999999 (Can be pre-set)
• Weight: 5N,10N,20N. 2Sets. (6Position type will have 6 Sets)
• Position: 2/6
• Load Current: 0~20A (Adjustable)
• Angle plate: Can check the test situation
• Sample fixture: Can be costumer-sized.
• Can do power line bending test (The User need prepare sample and power supply ), Can record the number of the sample work with load.
Datasheet
Features
• Fully meets the requirements of IEC60335、IEC60598、GB7000 and GB4706.
• Provide different type of fixtures. Each position can do the test independently.
• Normal mode is 2 position type(For the test lab) and 6 Position (For the factory and production line). If necessary can be costumer-sized
