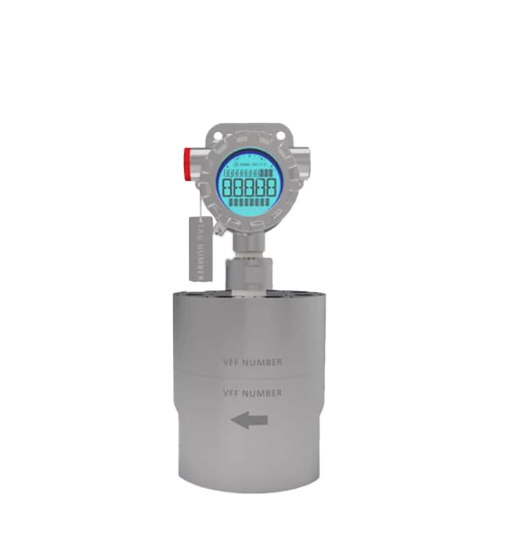

Litre Meter LF05 VFF flow meter (0.063~30 L/hr, ±1.0%)

Practical applications include:

Offshore Chemical Injection

Hydraulic line monitoring for well control valves and leak detection

Wash water measurement and general metering of low and high viscosity fluids

Subsea Chemical Injection and hydraulic fluid measurement

Technical specification:

Flow range (L/hr): 0.063 to 30

Process Connection: NPT 1/2", Autoclave Medium Pressure:  9/16”

Max Pressure (bar/psi): 1035/15,000

Seal Material Wetted/Pressure: FEP Encapsulated FKM

Filtration (microns): 40

Measuring Accuracy: ±1.0% of reading

Linearity: ±0.5% of reading

Repeatability: ±0.1% of reading

Viscosity: 0.5 – 100,000 cSt or greater

 Temperature Rating: -40°C to 75°C  (up to 100°C with remote mount display)

Material of construction

Body: 316L Stainless Steel (other materials on request)

Rotor: Ultra low friction PVD coated Titanium

Pressure balance chamber: Ultra low friction PVD coated Nitronic-60

Seals: FEP Encapsulated FKM

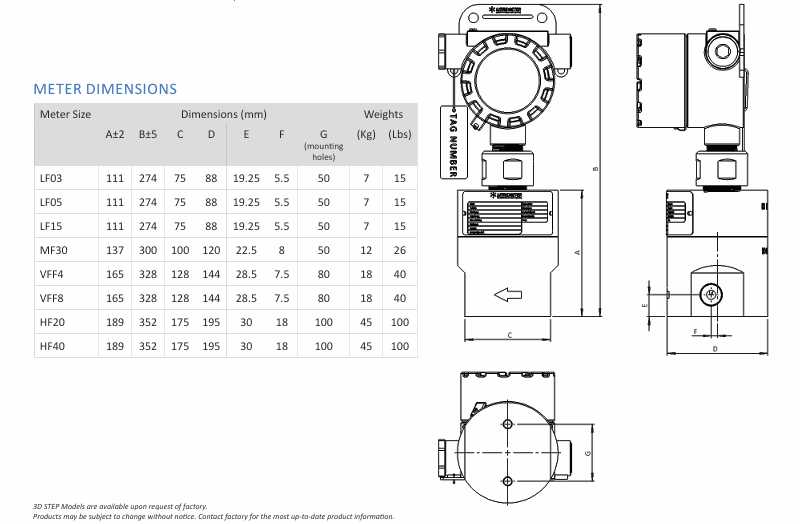

Dimensions: See dimensional drawing (In details)

See datasheet for choosing suitable configurations!
