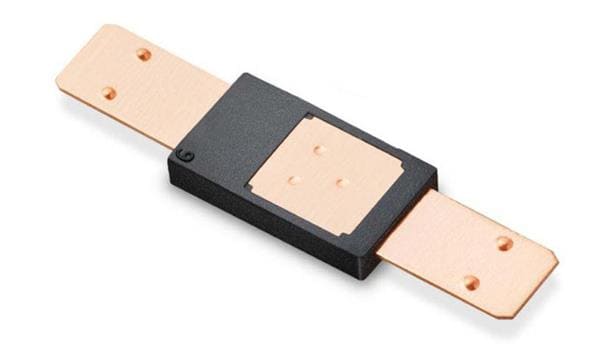

Littelfuse MHP-TAC15-12-90 Thermal Cutoffs MINI-BREAKER MHP-TAC15-12-90
Manufacturer: Littelfuse Model: MHP-TAC15-12-90 - Contact
Width: 2.8 mm
Height: 0.8 mm
Length: 4.75 mm
Tolerance: +/- 5 C
Resistance: 5 mOhms
Hold Current: 15 A
Contact Rating: 12 VDC / 25 A, 6000 cycles
Rated Temperature: + 90 C
Reset Temperature: > 40 C
Maximum Leakage Current: 150 mA
Minimum Holding Voltage: 3 VDC
Maximum Breaking Current: 5 VDC / 80 A, 100 cycles
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 30 C
