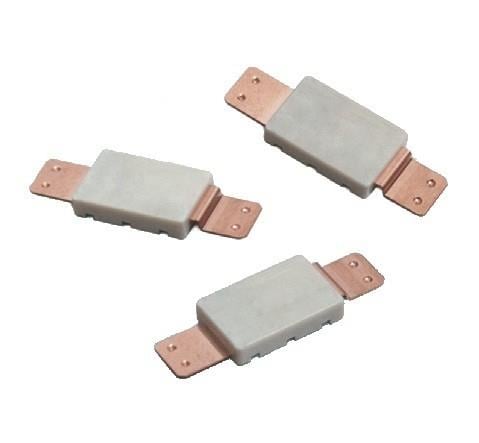

Littelfuse RF4866-000 Metal Hybrid Protection Breakers MHP-TAM15-9-82N
Manufacturer: Littelfuse Model: RF4866-000 - Contact
Width: 3.85 mm
Height: 1.15 mm
Length: 5.8 mm
Resistance: 2.5 mOhms
Width - in: 0.15 in
Width - mm: 3.85 mm
Length - in: 0.23 in
Length - mm: 5.8 mm
Contact Rating: 9 VDC / 25 A, 6000 cycles
Rated Temperature: + 82 C
Reset Temperature: > 40 C
Maximum Leakage Current: 200 mA
Minimum Holding Voltage: 3 V
Maximum Breaking Current: 5 VDC / 80 A, 100 cycles
Maximum Operating Temperature: + 87 C
Minimum Operating Temperature: + 77 C
