Measuring range: 0.75mm~300.0mm(0.03inch~11.8inch)
Units: Metric/Imperial unit seletable
Sound Velocity Range: 1000m/s~9999m/s(0.039~0.394in/μs
Display resolution:
0.01mm or 0.1mm(lower than 100.0mm)
0.1mm(more than 99.99mm)
Accuracy: ±(0.5%Thickness+0.04)mm,depends on Materials and conditions
Data Memory:
5 files(up to 100 values for each file)of stored values
5 Sound Velocity of stored values
Power Source: 2pcs 1.5V AA size,batteries.250 hours typical operating time(LED backlight off)
Outline Dimensions: 150mm*74mm*32mm
Workpiece surface temperature: – 10 ~ 300 ℃
The minimum thickness value capture capacity

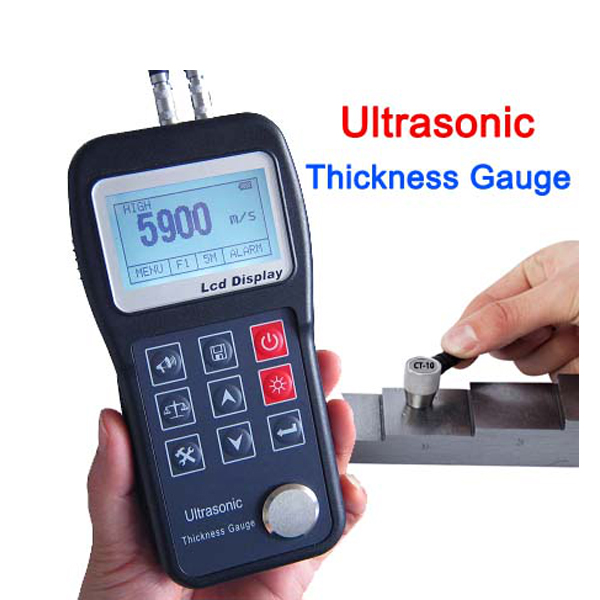

Standard configuration NDT310 host, 5MHz probe, 4 mm steel calibration block, coupling agent, 2 batteries (non – Aviation)
Measurement cycle: 4 times/SEC, scanning of single point measurement model 20 times per second.
Weight: 238 g
Power source: Type AA alkaline battery 1.5 V
Optional attachments: 2 MHZ, 7 MHZ and 5 MHZ (high temperature)
