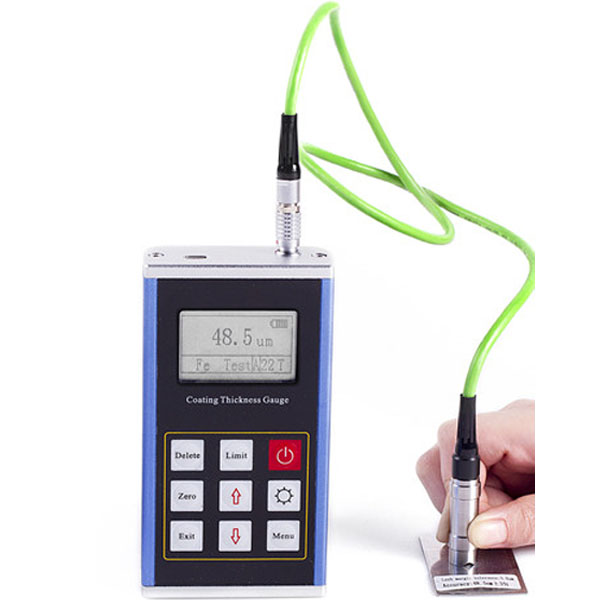

Magnetic Induction(Fe): Measuring the thickness of Non-magnetic coating on magnetic metal substrate, such as aluminum, chromium, copper, zinc, rubber, paint on the base of steel, iron, alloy and magnetic steel .
Eddy Current(NFe): Measuring the thickness of Non-conductive coating on non-magnetic metal substrate, such as rubber, plastic, paint, oxide on the base of aluminum, copper, zinc, tin.
Measuring principle Magnetic induction (Fe ) or Eddy current ( NFe)
Measuring range (µm) 0~1250μm
Accuracy: ±[(1~2%)H+1] μm H refers to the thickness of testing piece
Minimum resolution (µm): 0.1μm
Min curvature of the min area (mm): Convex1.5 Concave9
Diameter of the min area (mm): Φ7
Critical thickness of substrate (mm): 0.5
Operating temperature: 0℃~40℃
Magnetic field: No strong magnetic field environment
Memory: 500 groups measured data
Dimensions: 230×86×46mm
Weight: 400g
Printer: Build-in High-speed Thermal Printer
Power supply Rechargeable Li-ion battery
Standard configuration: Main unit, 5 specimens (48.5mm, 99.8mm, 249mm, 513mm 1024mm),Charger, paper for printer, Fe or NFe probe & substrate
Optional Accessories Probes, Specimens, Paper for printer
