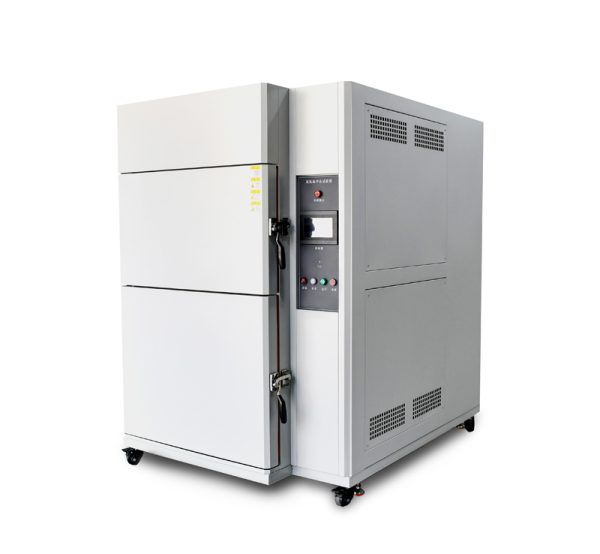

Lonroy LR-B010 Cold Hot Impact Testing Machine (-80℃～＋220℃)

Volume and dimension

Effective volume: 80L

Inner box size: W500×H400×D400 mm

Outer box dimension: W1400×H1950×D1600 mm

Performance indicators (ambient temperature +5℃~30℃ under no-load conditions)

Temperature range: -80℃～＋220℃

Impact temperature range

High temperature: 60℃ ~ +200℃

Low temperature: -10℃ ~ -60℃

Preheating temperature range: ＋60℃ ～ ＋220℃

Heating time of high temperature tank: RT (room temperature) ~ +220℃≤ 30min (room temperature +10 ~ +30℃).

Precooling temperature range －10℃～－80℃

Cooling time of cryogenic tank: RT (room temperature) ~ -80℃≤ 80min (room temperature +10 ℃ — +30℃)

Temperature fluctuation: ≤±0.5℃

Temperature uniformity: ≤±2.0℃

Damper transition time: ≤5S (open cylinder conversion time)

Impact recovery time: -60– +200℃≤5min.

Temperature exposure constant time: ≥30min

Temperature shock condition: High temperature ~ low temperature, low temperature ~ high temperature, normal temperature ~ high temperature ~ low temperature, normal temperature ~ low temperature ~ high temperature

Power source: AC3￠5W 380V 50Hz(R, STN three-phase four wire plus ground wire) (voltage fluctuation ≤±10%)

Gross power: 32KW

Performance Ambient temperature requirements: 0~+30℃

Cooling mode: The equipment adopts air cooling mode

Energy-saving: design The refrigeration system can adjust the power according to the load size, using PID+PWM principle of VRF technology (electronic expansion valve according to the heat condition of refrigerant flow servo control), and has the compressor energy regulation technology, can achieve excellent energy saving effect
