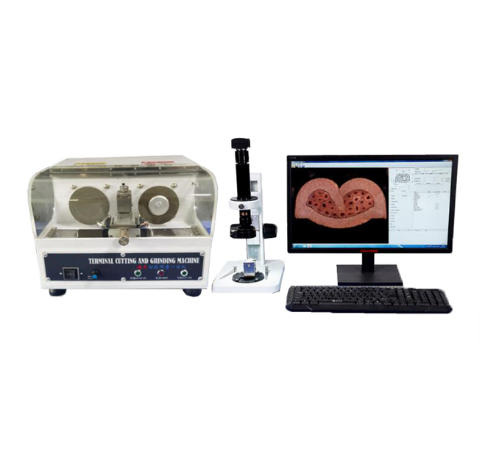

Lonroy LR-VCG-100 Terminal Section Analyzer (ø 0.10mm – ø 20.00mm)

1. Main technical indicators

2. Cutting module

Range: 0.01mm2 to 100.00mm2 (ø 0.10mm – ø 20.00mm)

Speed: 2800 RPM

Cutting speed: manual adjustable

Cutting wheel: φ110 x 0.5 xφ20mm

2. Polish the module

Speed: 1400 RPM

Z fine tuning range: 0.0mm to 20.0mm

Velcro abrasive paper: 100mm 1000# 2000# (optional)

3. Corroded part

Professional terminal section cleaning liquid

Corrosion time: 5 to 30 SEC

4. Picture intake and analysis

3 megapixel industrial camera

High quality, low distortion stuck lens

Standard magnification: about 20-200x

Interdentate multiples: 0.7x,1x, 2X, 3X, 4x, 4.5x

Standard observation range: 0.01mm2 to 50 mm2

Ultra bright white LED light source adjustable control

5. Analysis and archiving

V3.2 version of the measurement software, including compression ratio, such as enhanced measurement tools.

6,Power supply: 230 VAC, 50Hz, 600 w

7. Volume and weight

Weight: about 30 kg

Volume: 500mm (l) x 350mm (W) x 350mm (H)

8. Software Functions:

Compression ratio, number of wire harness, crimping height, crimping width, sectional area, support height, support Angle, burr width, burr height, etc
