It is suitable for measuring the distillation range of petroleum products with high boiling point such as wax oil and lubricating oil.
Specification
Working power supply: AC(220±10%)V 50Hz;
Power consumption: ≤1700W;
Flask heating furnace power: (0 ~ 1300)W continuously adjustable;
Heating power of measuring barrel chamber: 350W, system automatic control;
The temperature control point of the receiver measuring cylinder chamber: (room temperature ~ 99) ℃±3℃, continuously adjustable;
Vacuum residual pressure setting range: (2 ~ 99) mmHg±0.1mmHg;
Vacuum residual pressure measurement range: (2 ~ 150) mmHg±0.1mmHg automatic constant pressure
Applicable environment: temperature 15℃ ~ 35℃, relative humidity: ≤ 85%;
The overall size of the instrument: 600mm×230mm×610mm (length × width × height);
Instrument net weight: 30kg.range of petroleum products with high boiling point such as wax oil and lubricating oil.
Introduction

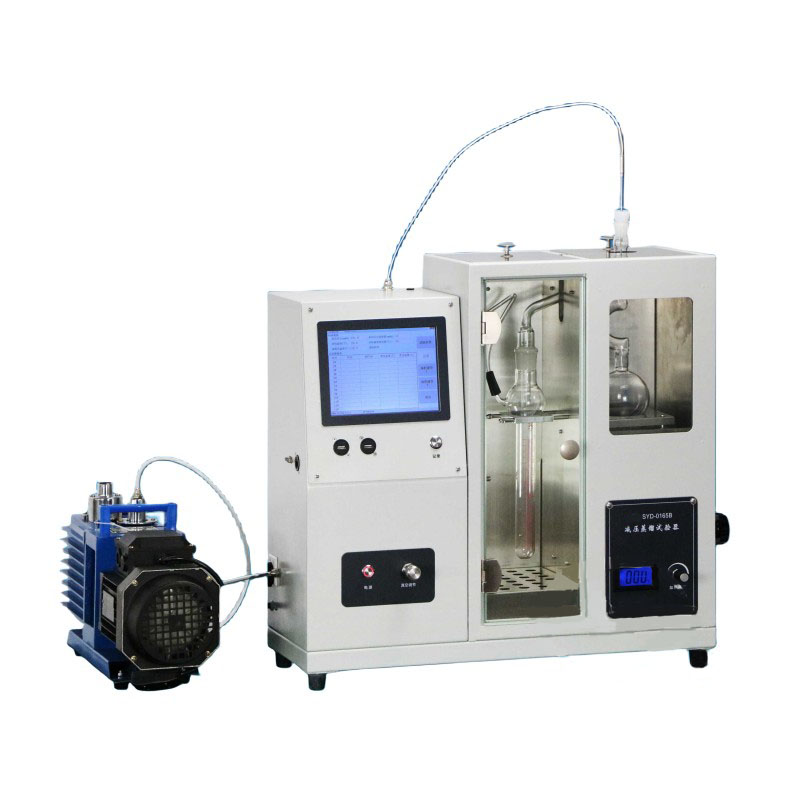

This instrument is designed and manufactured according to the requirements of SH/T O165 92 confirmed in 2006) “High vacuum distillation method for high boiling point range of petroleum products” of the People’s Republic of China. It is suitable for measuring the distillation range of petroleum products with high boiling point such as wax oil and lubricating oil.
Main technical features
1, built-in industrial computer, can achieve real-time data upload storage analysis and other functions.
2, the use of high-precision temperature sensor, automatic detection of oil vapor temperature, no visual observation and reading.
3, the use of LCD touch screen technology, can input, modify, display a variety of test parameters, and through the touch screen for a variety of control.
4, in addition to the manual reading of distillate, the rest of the work is automatically completed by the instrument.
5, distillation flask for quartz custom flask, to ensure the safety of the test.
