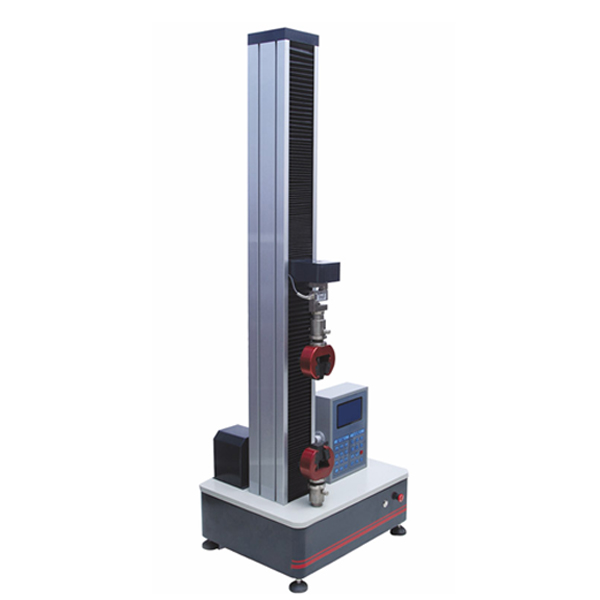

Lonroy WDS-5A Cheap Digital Tensile Strength Tester (0-5KN)

Max test force: 5KN

Measure force range: 2%-100%

The relative error value: ±1%

Test repeatability relative error value: ≤1%

Zero relative error test force: ±0.1%FS

Speed range: 0.1-500mm/min

Test space: 800mm

Loading way: electric

Power: ~220V±10% 50Hz

Machine size: 500mm*410mm*1500mm

Weight: 150KG

Details

The main purpose of the testing machine and the applicable scope

Electronic universal testing machine, digital display type is mainly used to test tensile, compression and plastic pipe fittings of various materials, the ring stiffness.In tensile test, the test material one of the biggest bearing force, deformation of tensile strength, elongation, elongation and other technical indicators;In compression test, the test material carrying the maximum stress, tensile strength, compression deformation and other technical indicators.Above testing parameters at the end of the test, by the main controller according to the test set at the beginning of test parameters automatic calculation, at the same time show the corresponding experimental results, the test parameters can be printed at the end of the test, also may be retained within the controller for query.
