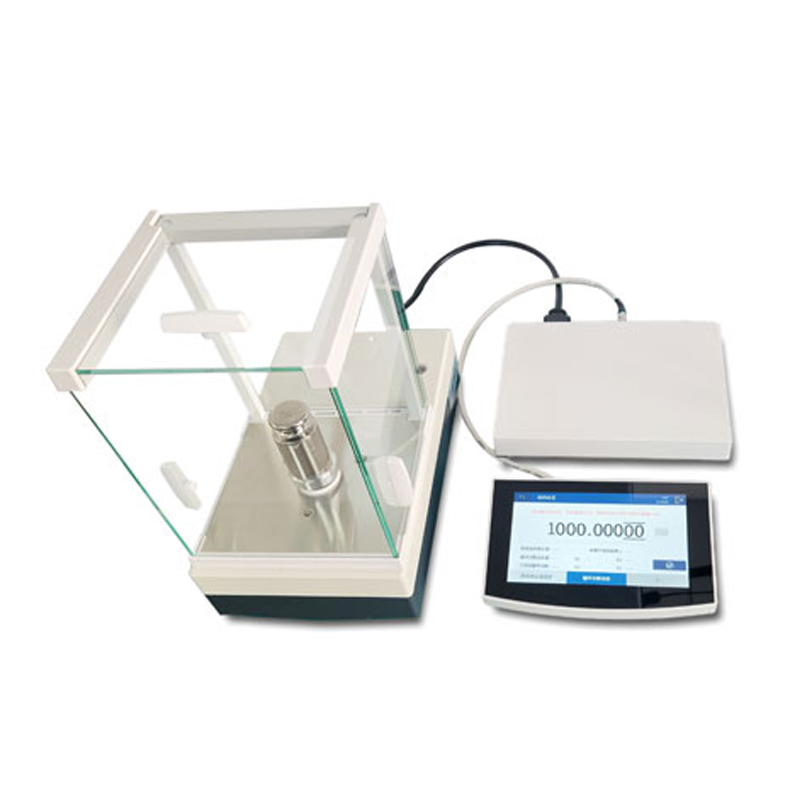

Lonroy XE5.6S Electrical Weight Mass Comparator Testing Machine (5.1g, 1μg)

Division value (d): 1μg

Maximum range (Max): 5.1g

Repeatability (5% loading)

+ Standard deviation: 1.5μg

+ Typical error: ±3μg

Repeatability (Close to 100% load)

+ Standard deviation: 2.5μg

+ Typical error: ±5μg

Linear error

+ Standard deviation: 1.5μg

+Typical error ±3μg

Position error (Test location according to OIMLR76 specification)

+ Test Weight: 5g

+ Standard deviation: 1.5μg

+ Typical error: ±3μg

Sensitivity drift (+10℃~+30℃): 5PPM

Maximum peeling range: Less than 100% of the maximum range

Accuracy class: Class I

Verification index value (e) (According to 2014/31/EU specification): 10μg

Typical stability time: 8s

Typical measurement time:10s

External calibration weight: 5g

Standard weight grade: E2(accordance with OIML R111-1)

Pan Size: ϕ30mm
