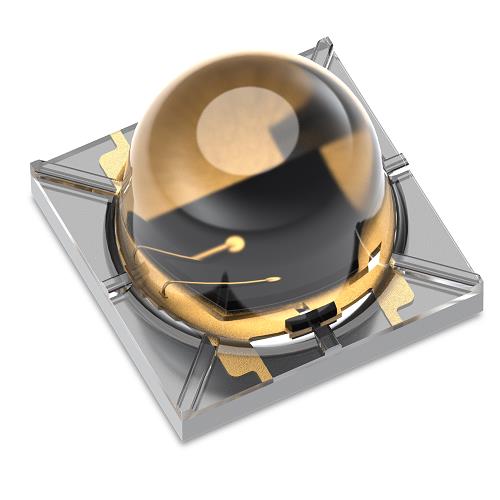

Lumileds L1I0-A940060020000 IR Emitters (IR LEDs) Infrared LED, 940 nm LUXEON IR Automotive
Manufacturer: Lumileds Model: L1I0-A940060020000 - Contact
Width: 3.7 mm
Height: 3.02 mm
Length: 3.7 mm
Fall Time: 14.5 ns
Rise Time: 9.9 ns
Beam Angle: 61 deg
Lens Shape: Dome
Wavelength: 950 nm
Power Rating: 1.375 W
Qualification: AEC-Q102
Viewing Angle: 61 deg
Mounting Style: SMD/SMT
Radiant Intensity: 1130 mW/sr
Illumination Color: Infrared
If - Forward Current: 1 A
Vf - Forward Voltage: 2.9 V
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
