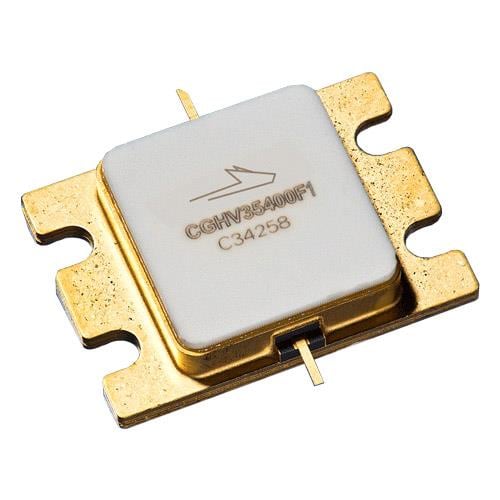

MACOM CGHV35400F GaN FETs GaN HEMT 2.9-3.5GHz, 400 Watt
Manufacturer: MACOM Model: CGHV35400F - Contact
Gain: 11 dB
Technology: GaN
Output Power: 500 W
Mounting Style: Screw Mount
Transistor Type: GaN HEMT
Transistor Polarity: N-Channel
Maximum Operating Frequency: 3.5 GHz
Minimum Operating Frequency: 2.9 GHz
Id - Continuous Drain Current: 24 A
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Vgs - Gate-Source Breakdown Voltage: - 10 V, 2 V
Vds - Drain-Source Breakdown Voltage: 150 V
Vgs th - Gate-Source Threshold Voltage: - 3.8 V
