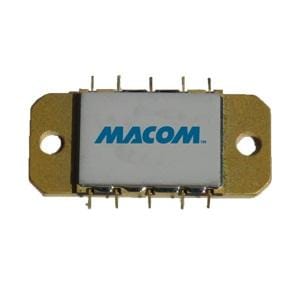

MACOM MAAP-010168-000000 Power Amplifiers 500-3000MHz 50 ohm Gain 24dB 12 Watt
Manufacturer: MACOM Model: MAAP-010168-000000 - Contact
Gain: 24 dB
Technology: GaAs
Unit Weight: 25.292 g
Mounting Style: Screw
Test Frequency: 500 MHz to 3 GHz
Frequency Range: 500 MHz to 3 GHz
Operating Frequency: 500 MHz to 3 GHz
Operating Supply Current: 3.5 A
Operating Supply Voltage: 10 V
P1dB - Compression Point: 39 dBm
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
