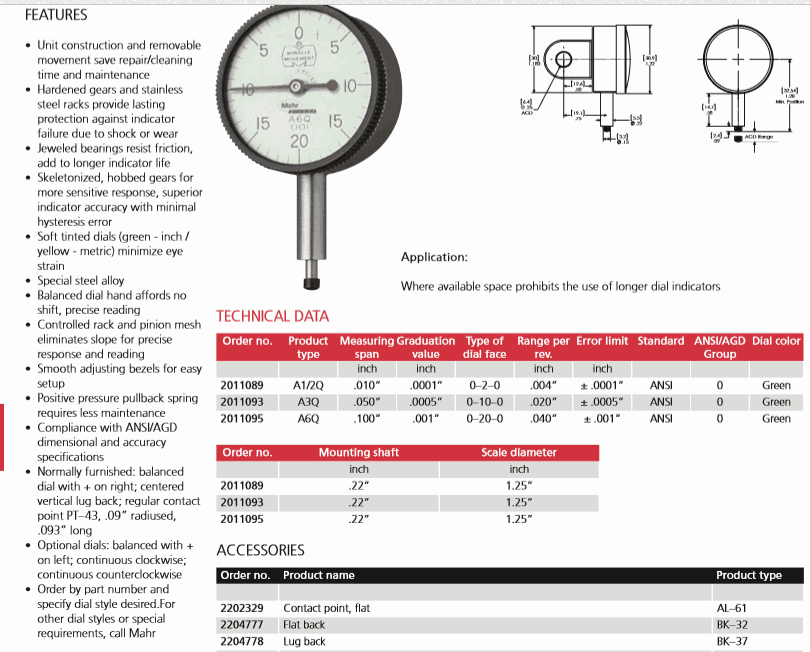

Product type: A3Q
Measuring span: .050”
Graduation value: .0005’’
Type of dial face: 0-10-0
Range per rev.: .020”
Error limit: ± .0005”
Standard: ANSI
ANSI/AGD Group: 0
Dial color: green
Accessories:
Contact point, flat, type AL– 61
Flat back, type BK– 32
Lug back, type BK– 37
Post back 7/32”, type BK– 38
Adjustable back, type BK– 45
Screw type back 1/4– 28, type BK– 88
Split bushing .218” x .374” x .5”, type BU– 112
Contact point, spherical, type PT– 118
Contact point, taper, type PT– 119
Contact point, spherical, A = 1/4”, type PT– 204
Contact point, spherical, A = 3/8”, type PT– 205
Contact point, spherical, A = 1/2”, type PT– 207
Contact point, spherical, A = 5/8”, type PT– 208
Contact point, spherical, A = 3/4”, type PT– 209
Contact point, spherical, A = 7/8”, type PT– 210
Contact point, spherical, A = 1”, type PT– 211
Contact point, spherical, A = 3/32” (normally furnished), type PT-43
