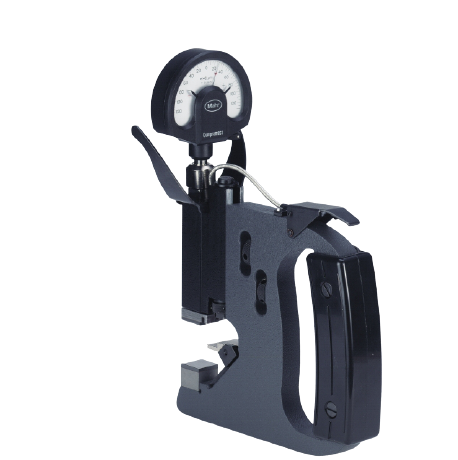

For rapid measurements of cylindrical parts such as shafts, bolts and spindles
For thickness and length measurements
Lifting lever:-
Product type: EMD– 300P– 1D
Application range: 0 – 25.4mm
Size of measuring surface: 15.5 x 15.5 mm
Measuring span: 0.5mm/0.02"
Indicating instrument (included in package): 2033119 Maxum-III
Parallelism deviation: 4µm
Measuring force: 18N
Package contains: allen key
Accessories:
Plain anvil (lower), left (option), type AL– 1755
Plain anvil (upper), left (option), type AL– 1756
Plain anvil (lower), right (option), type AL– 1757
Plain anvil (lower), right (option), type AL– 1758
Plain anvil (lower), middle (option), type AL– 1759
Plain anvil (lower), middle (option), type AL– 1760
Base/bench stand for 300P or 1000P style snap gage, type BA– 26
Bench stand for AGD style 3 disc masters up to 127 mm / 5”, type BA– 71
Heavier force spring for EMD– 30XP, type SP– 118, 2243297
Lighter force spring for EMD– 30XP, type SP-192, 2243295
FEATURES
• Patented “Channel Lock” design assures precise parallel anvil surfaces throughout the full 25 mm / 1“ range of adjustment
• All Series 300P snap gages are fully adjustable with positive position locking at any point within the range
• 0.50 mm / .020“ movement of sensitive contact
• Snap gages available over a wide range of sizes, styles, and readout configurations
• Large 15.5 mm / .61“ square tungsten carbide anvils provide flat, parallel, working surfaces ensuring precision that lasts
• Indicator can be rotated to read from front or rear of the gage
• All adjustments accomplished using a single hex wrench (furnished)
• Data interface: Digimatic, RS232C, USB
• Energy supply: Battery operation
• Package contains: allen key
