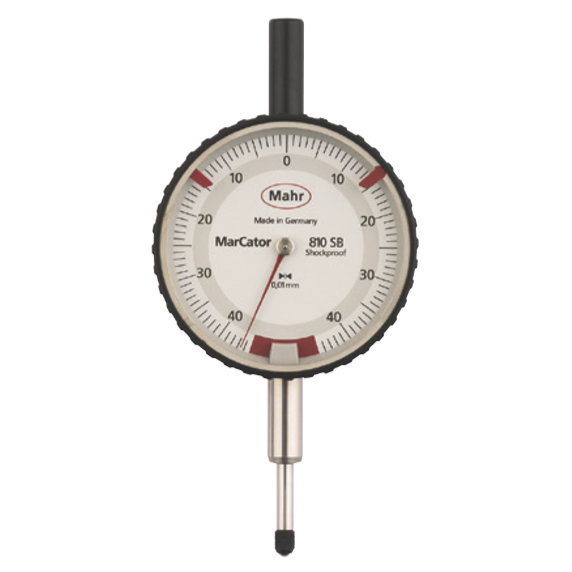

Mahr 4317000 Safety Dial Indicator (810 SB, 0.8mm)

Product type 810 SB

Measuring span: 0.8mm

Graduation value: 0.01mm

Type of dial face: 40-0-40

Range per rev.: 0.8mm

Error limit: 7µm

Error limit, 1/2 revolution: 6µm

Error limit, 1/10 revolution: 5µm

Repeatability fw: 3µm

Hysteresis fu: 3µm

Overtravel: 9mm

Measuring force incoming measuring pin N: 0.9 – 1.1

Standard: DIN 878

Shockproof movement: yes

Lifting protection cap: yes

Dial color: White

Package contains: case

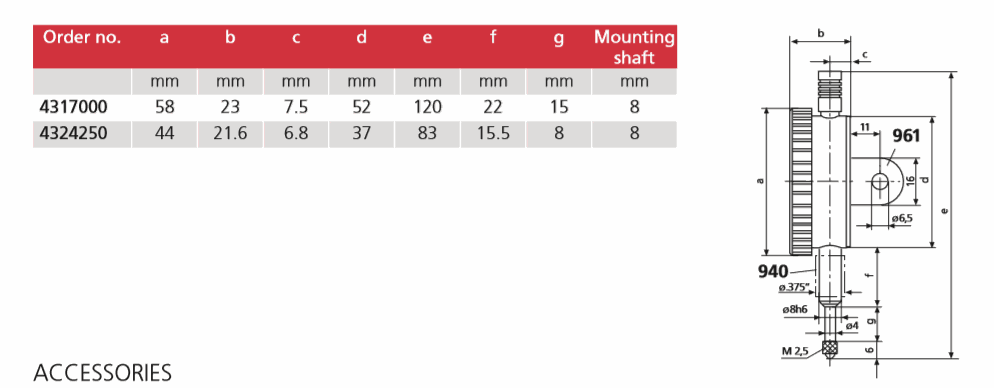

Accessories:

• Adapter bush (.375” / 8 mm), type 940

• Lug back, vertical, for 803, 810

• Lug back, horizontal, for 803, 810
