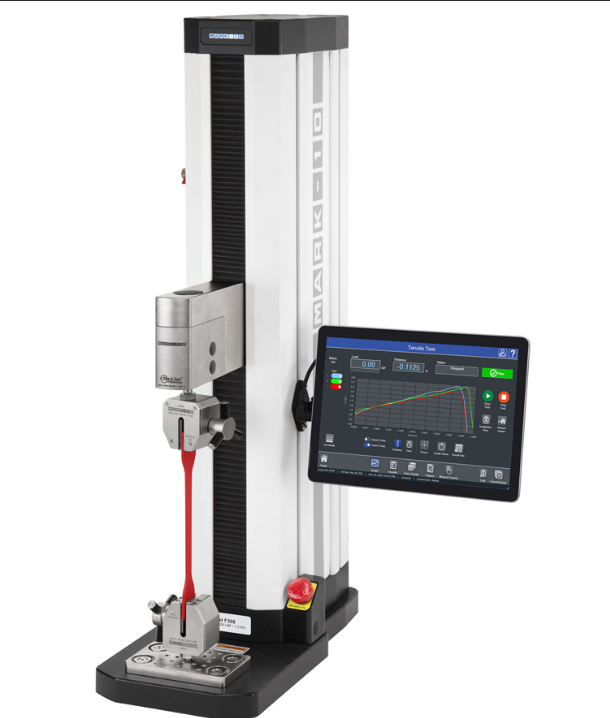

Mark-10 F305 Digital Force Testers (300 lbF [1.3 kN])
Manufacturer: Mark-10 Model: F305 - Contact
Load capacity: 300 lbF [1.3 kN]
Maximum travel: 18.0 in[457 mm]
Speed range: 0.02 - 45 in/min[0.5 - 1100 mm/min]
Load sampling rate: 20.000 Hz
Data acquisition rate: 1.000 Hz
Speed accuracy: ±0.2% of setting
Distance accuracy: ±0.002 in [0.05 mm]
Distance resolution: 0.0005 in / 0.01 mm
Limit switch repeatability: ±0.001 in / 0.03 mm
Overload protection: Motor stops at 120% of full scale of the force sensor
Power: Universal input 100-240 VAC, 50/60 Hz, 120W
Fuse type: 2.5 A, 250V, 3AG, SLO BLO
Weight: 60 lb
[27 kg]
