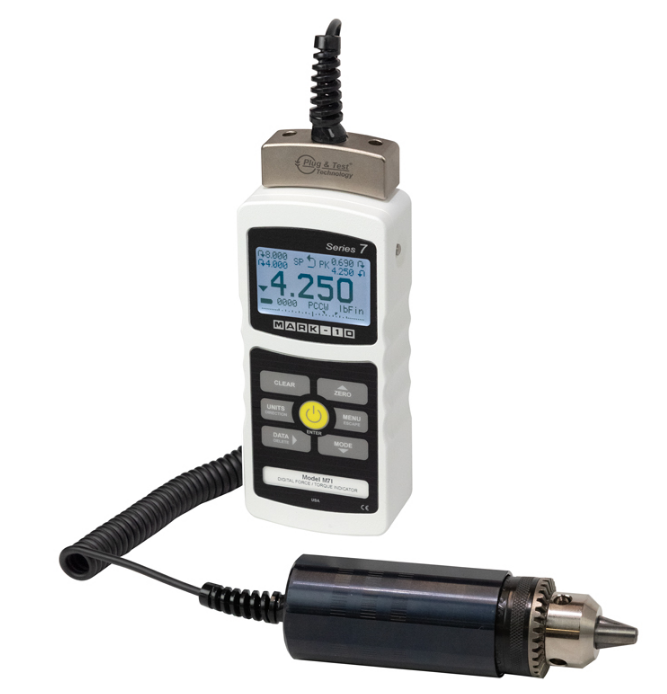

Mark-10 M7IE Professional Force / Torque Indicator (Force/torque indicator, 220V European Plug)

Type: Force/torque indicator, 220V European Plug

Accuracy: ±0.1% of full scale + sensor

Sampling Rate: 14.000 Hz

Power:

AC adapter: 100-240VAC, 50-60 Hz, 0.3 A

Battery: Rechargeable 8.4V NiMH

Low battery indicator appears when battery level is low, and gauge powers off automatically when power reaches critical stage.

Battery life: Backlight on / off: up to 7 / 12 hours of continuous use

Outputs:

USB / RS-232: Configurable up to 115.200 baud. Includes Gauge Control Language 2 for full computer control

Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices

Analog: ±1 VDC, ±2% of full scale at capacity

General purpose: Three open drain outputs, one input

Set points: Three open drain lines

Configurable settings:

Digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration

Weight: 0.7 lb [0.3 kg]

Environmental requirements: 40 - 100°F, max. 96% humidity, non-condensating
