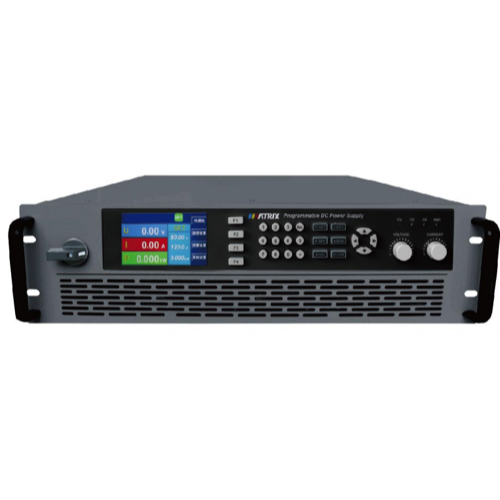

MATRIX WPS-6000S-300-75 High-Power DC Power Supply (300V, 75A, 6000W)

Voltage: 0-300V

Current: 0-75A

Power: 6000W

Ripple: 40mVrms

Rated input: Three phase 380VAC ± 10% 47-63Hz

DC output:

    Output voltage: 0V-rated value

    Output current: 0A-rated value

    Output power: 0W-rated value

    Efficiency: ≤92%

Setting value accuracy:

    Voltage: ≤ ±(0.05% + 0.04% FS)

    Current: ≤  ±(0.15% + 0.1% FS)

    Power: ≤ ±0.8% FS

Readback value accuracy:

    Voltage: ≤ ±(0.05% + 0.04%FS)

    Current: ≤  ±(0.15% + 0.1%FS)

    Power: ≤ ±0.8% FS

Source effect:

    Voltage: ≤ 0.02% FS (± 10% UAC input)

    Current: ≤ 0.05% FS (± 10% UAC input)

Load effect:

    Voltage: ≤ 0.05% FS (0-100% load adjustment rate)

    Current: 0.15% FS (load adjustment rate of 0-100% △UDC)

    Specitications: Built in 15-pin D-Sub female plug, electrically isolated

Analog interface:

    Signal range: 0~5V or 0~10V (switchable)

    U/I/P accuracy: 0 -10V: ≤ 0.2% FS 0 -5V: ≤0.4%FS

Dynamic response time(10%-90% load):

    Load adjustment time: ≤2ms (load adjusted from 10 to 100%)

    Output voltage rise time: 30ms

Functional protection: OTP, OVP, OCP, OPP, PF

Interface: RS232/ RS485/ USB/ LAN and other communication interfaces

Parallel operation: Realizable, can connect up to 10 products (via shared bus) through real master-slave operation

Operating environment: Working temperature: 0-50 °C, humidity: <80%, storage temperature: -20~70 °C, altitude: <2000m

Weight: 25kg

Size: 482*660*132mm
