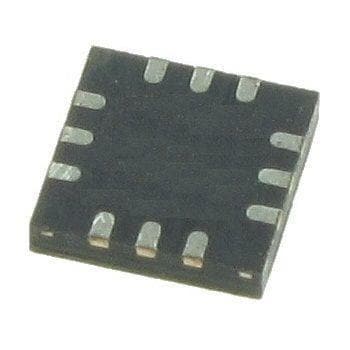

Maxim Integrated MAX4704EGC+T Multiplexers Low-Voltage, 60Ohm, 4:1 Analog Multiplex
Manufacturer: Maxim Integrated Model: MAX4704EGC+T - Contact
Width: 3 mm
Height: 0.89 mm
Length: 3 mm
Bandwidth: 200 MHz
Supply Type: Single Supply
Unit Weight: 22 mg
Configuration: 1 x 4:1
On Time - Max: 60 ns
Mounting Style: SMD/SMT
Off Time - Max: 20 ns
Number of Channels: 1 Channel
On Resistance - Max: 60 Ohms
Supply Current - Max: 1 uA
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 1.8 V
Pd - Power Dissipation: 952 mW
Propagation Delay Time: 60 ns
Operating Supply Voltage: 3 V, 5 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
