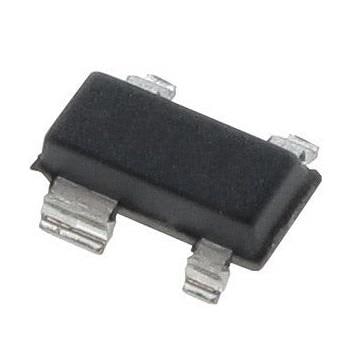

Maxim Integrated MAX6160EUS+T Voltage References SOT23, Low-Cost, Low-Dropout, 3-Terminal
Manufacturer: Maxim Integrated Model: MAX6160EUS+T - Contact
Width: 1.4 mm
Height: 1.22 mm
Length: 3.04 mm
Accuracy: 10 mV/mA
Topology: Series References
Unit Weight: 9.193 mg
Mounting Style: SMD/SMT
Output Voltage: 1.23 V to 12.4 V
Reference Type: Series Adjustable References
Initial Accuracy: 1 %
Supply Current - Max: 130 uA
Maximum Output Voltage: 12.4 V
Temperature Coefficient: 100 PPM / C
Operating Supply Current: 130 uA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Series VREF - Input Voltage - Max: 12.6 V
