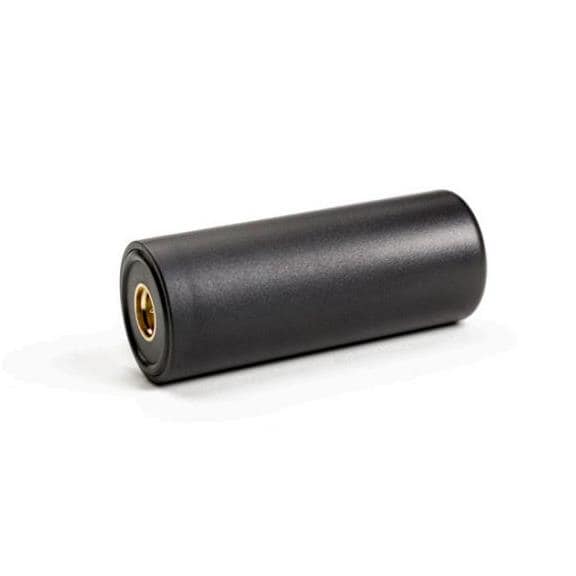

Maxtena M1600HCT-P-SMA Passive Antenna High Performance Iridium/GPS/GLONASS Passive Antenna

Gain: 2.8 dBic, - 3 dBic, 0 dBic

VSWR: 1.5

Style: Stubby

Length: 48 mm

Diameter: 18.5 mm

IP Rating: IP67

Impedance: 50 Ohms

Application: Vehicle Tracking, Fleet Tracking, Military, Security, Asset Tracking, Oil & Gas Industries, Navigation Devices, Mining Equipment, LB2 Applications, M2M Applications, Handheld Devices, Law Enforcement

Unit Weight: 11 g

Polarization: RHCP

Mounting Style: Panel Mount

Number of Bands: 3 Band

Center Frequency: 1.575 GHz, 1.602 GHz, 1.621 GHz

Mechanical Style: Helical

Maximum Frequency: 1.626 GHz

Minimum Frequency: 1.575 GHz

Termination Style: Connector

Antenna Connector Type: SMA

Protocol - GPS, GLONASS: GLONASS, GPS, Iridium

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
