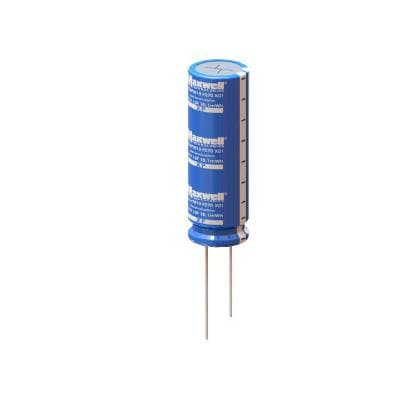

Maxwell Technologies BCAP0010 P270 X01 Cylindrical 2.7V, 10F wire lead XP
Manufacturer: Maxwell Technologies Model: BCAP0010 P270 X01 - Contact
ESR: 20 mOhms
Life: 1500 Hour, 500000 Cycle
Height: 30.5 mm
Length: 30.5 mm
Diameter: 10 mm
Tolerance: - 10 %, + 20 %
Capacitance: 10 F
Orientation: Vertical
Unit Weight: 3.200 g
Lead Spacing: 5 mm
Lead Diameter: 0.6 mm
Current Rating: 10.3 A
Leakage Current: 23 uA
Termination Style: Radial
Voltage Rating DC: 2.7 VDC
Maximum Operating Temperature: + 65 C
Minimum Operating Temperature: - 40 C
