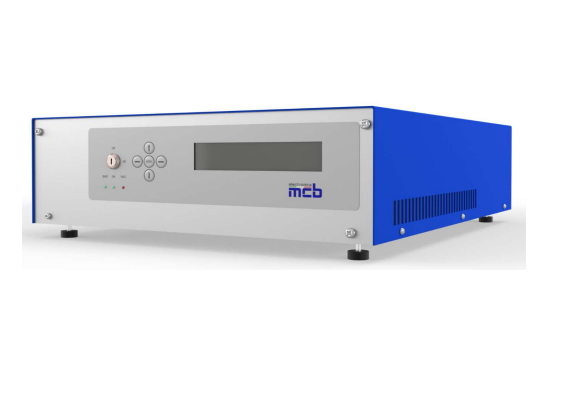

MCB Electronics PF-DC-2.5-S-R-V05-A500 Power-Flow - AC/DC Current Generator (2.5 kW)

Power: 2.5 kW

Transformer: Isolation transformer + diode bridges

Full Load Efficiency: > 89%

Input Connection: Standard Terminal blocks

Output Connection: Custom sized copper bars in the rear of the unit

VOLTAGE

Input Range [PH-N]: 190 – 267 Vac

Output [DC]: 5 Vdc

Regulation System [PH-N]: Non Adjustable

Sensing Function: Yes driven in current. MCB104 board with current sensors.

Total Harmonic Distortion [THD]: < 0,5%

Static Line Regulation: < 1%

Static Load Regulation: < 1%

Dynamic stability of the output voltage upon load variation: < 0.2% with 100 ms stabilization time with thermic curve

CURRENT

Output and Regulation: Single Range 25 A - 500 A

FREQUENCY

Input Range: 47 Hz - 63 Hz

Output [switchable from control panel and remote]: -

Output [adjustable from control panel and remote]: -

OTHERS

Noise level: 60 dBA

Power Protections: OVP, UVP, OCP, OTP

CONTROL PANEL

Commands: LCD display 4 x 40 characters + command buttons

Voltage and current LCD Display accuracy: ± 2 DIGIT

Voltage LCD Display resolution: No relevant in this case since there's no voltage regulation

Current LCD Display resolution: ± 1 A

Frequency value visualization: -

Output Current Value Visualization: Yes

COMMUNICATION INTERFACES

Analog: MCB owned I/O 12 poles equipped with 0-10 Vdc

RS232: Yes

Ethernet: Yes

Communication Protocols: 0-10 Vdc over analog I/O 12 poles & SCPI over RS232 and Ethernet

Reference Voltage of remote controls: Common ground with ground line

MECHANICAL

Dimensions (W x H x D):

Inverter + Isolation Transformer: 1 x [3U D540 including 40 mm handles]

Diode Bridges + Extra heat sink + Extra wiring/terminals + Extra current transducer: 1 x [3U D560 including 40 mm handles]

Weight: 60 kg

ENVIRONMENTAL

Cooling: Air Forced Circulation

Operating Temperature: from 0° to +40°C

Storage Temperature: from -40° to +85°C

REGULATORY

Safety: EN 61000-6-2 (2005) + AC (2005), EN 61000-6-4 (2007)+A1(2011), EN 61010-1 (2010) + A1/AC (2019)

EMC: 2014/35/UE (LVD), 2014/30/UE (EMC)

Datasheet
