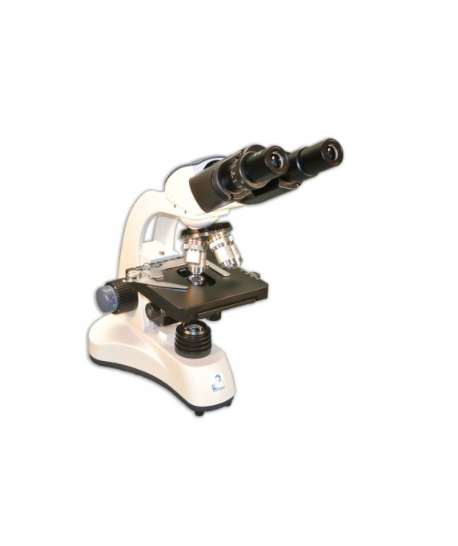

EYEPIECE
Eyepiece (Ocular Lens) - Lens closest to the observer’s eye, magnifies the primary image formed by the objective lens. Locked in Secured DIN WF 10x/18 mm eyepiece with pointer on Binocular head
VIEWING HEADS
Binocular 30° inclined tubes
OBJECTIVE TURRET
Quadruple forward-facing objective nosepiece on ball bearings - Revolving turret which holds objective lenses, permits changes of magnification by rotating different power objective lenses in the optical path
OBJECTIVES
All models are equipped with Achromatic DIN Semi Plan corrected 4x/0.13, 10x/0.25 and S40x/0.65 and S100x/1.25 objectives
ANTI-FUNGUS COATING
All optical parts are anti-fungus treated for mold prevention
ERGONOMIC HANDLE
Easy to grab handle for portability and ease of storage
STAGE
Plain 123 x 119 mm plain stage microscope where the specimen slide is placed
STAGE CLIPS
Two stage clips hold specimen slide in place on stage. Microscope stage is specially drilled and tapped to accept standard stage clips
FOCUS CONTROLS
Low positioned Ergonomic Coaxial Focus Control with 200 µm fine adjustments, 2 µm precision, located on each side of arm, raise or lower the stage to bring specimen image into focus. Fine Focus knobs (smaller knobs situated below coarse focusing knobs) allow more precise image adjustment
ILLUMINATION
Microscope is equipped with sub-stage built in LED illumination which provides even intensity light and low power consumption. 1 Watt with internal power supply
ABBE CONDENSER
N.A. 1.25 with iris diaphragm lever for height adjustability, provides a more sophisticated method of controlling the sub-stage illumination, and assists in obtaining optimum image resolution and contrast
