Body: Binocular, Rotatable 360°, Cast Aluminum Alloy Construction
Zoom Ratio: 6.5:1
Zoom Range: 0.7x - 4.5x
Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5
Zoom Control: Dual, graduated, bilateral
Magnification: 7x - 45x (10x eyepieces)
Objective Lens: Brass Construction
Field of View: 32mm - 5.1mm
Working distance: 93mm
Eyetube Inclination: 45°
Eyepieces: 5x, 7.5x, 10x, 12.5x, 15x, 20x, and 30x (optional)
Interpupillary Distance: 54mm - 75mm
Dioptric Adjustment: Dual (+/- 5 diopters)
Extended Mag Range: 2.1x - 270x (With auxiliary lenses and eyepieces)
Extended Working Distances: 34mm - 251mm (With auxiliary lenses and eyepieces)
Auxiliary Lenses: 0.3x (252mm), 0.44x (181mm), 0.5x (150mm), 0.75x (97mm), 1.5x (49mm), and 2x (34mm) (optional)
Mounting: Fits 84.5mm Diameter Focus Holders
MA504 Super Widefield Eyepiece 20X (paired) (With 25mm reticle mount)
S-4100 Universal boom stand with 20 mm drop down post for F or FX block 400mm vertical post
MA517 Supplementary lens 0.5X, working distance 150mm (5.9”)
FT192 Annular 150W fiber optic illumination system-110V/ 115V
Includes

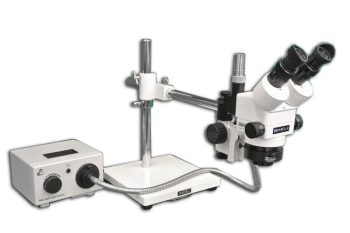

EMZ-8TR Trinocular Zoom Stereo microscope body with zoom range, W.D. 104 mm, magnification from 7X to 90X (Using SWF10X and SWF20X eyepieces)
MA502 SWF10X super widefield eyepiece (Paired), F.N. 23
MA504 Super Widefield Eyepiece 20X (paired) (With 25mm reticle mount)
S-4100 Universal boom stand with 20 mm drop down post for F or FX block 400mm vertical post
MA794 Supplementary lens 0.5X, working distance 174mm (6.8”)
FT192 Annular 150W fiber optic illumination system-110V/ 115V
Meiji Techno Dust Cover (MA703)
Rubber Eyeguards/ Eyeshields (Paired) (MA600)
EMZ Meiji Techno Instruction Manual
