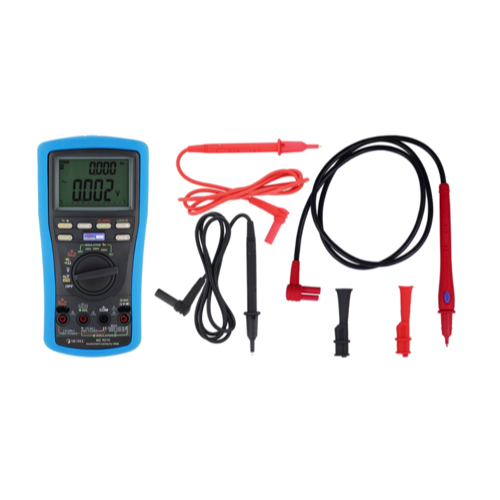

Metrel MD 9060 Digital Multimeter (TRMS 500.00 mV … 1000.0 V; 600.0 µA … 10.00 A)

TRMS AC and AC+DC Voltage (20 Hz … 40 kHz): 500.00 mV … 1000.0 V / From ±(0.45% of reading + 40 digits) to ±(4.0% of reading + 40 digits)

DC Voltage: 500.00 mV … 1000.0 V / From ±(0.02% of reading + 2 digits) to ±(0.15% of reading + 2 digits)

AC Voltage (20 Hz … 100 kHz): 500.00 mV … 1000.0 V / From ±(0.3% of reading + 20 digits) to ±(4.0% of reading + 40 digits)

DC Current: 500.00 µA … 10.000 A / From ±(0.15% of reading + 20 digits) to ±(0.5% of reading + 20 digits)

TRMS AC and AC+DC Current (40 Hz … 100 kHz): 600.0 µA … 10.00 A / From ±(0.5% of reading + 50 digits) to ±(5.0% of reading + 50 digits)

Diode Test:

2.0000 V / ±(1.0% of reading + 1 digit)

Open-circuit voltage < 3.5 V DC, Test current 0.4 mA

Resistance: 500.00 Ω … 50.000 MΩ / From ±(0.07% of reading + 10 digits) to ±(2.0% of reading + 6 digits)

Conductance: 99.99 nS / ±(2.0% of reading + 10 digits)

Capacitance: 50.00 nF … 25.00 mF / From ±(0.8% of reading + 3 digits) to ±(6.5% of reading + 5 digits)

Temperature:

-50.0 °C … 1000.0 °C / ±(0.3% of reading + 1.5 °C)

-58.0 °F … 1832.0 °F / ±(0.3% of reading + 3.0 °F)

Variable Frequency Drive AC: 5 Hz … 440 Hz / From ±(2.0% of reading + 50 digits) to ±(6.0% of reading + 80 digits)

Frequency of Digital Equipment: 5.000 Hz … 1.0000 MHz / ±(0.002% of reading + 4 digits)

Mains Frequency: 10 Hz … 200 kHz / ±(0.02% of reading + 4 digits)

Power Supply: 9 V battery (NEDA1604G, JIS006P, or IEC6F22)

Overvoltage Category: CAT IV / 1000 V

Dimensions: 208 × 103 × 64.5 mm

Weight: 635 g
