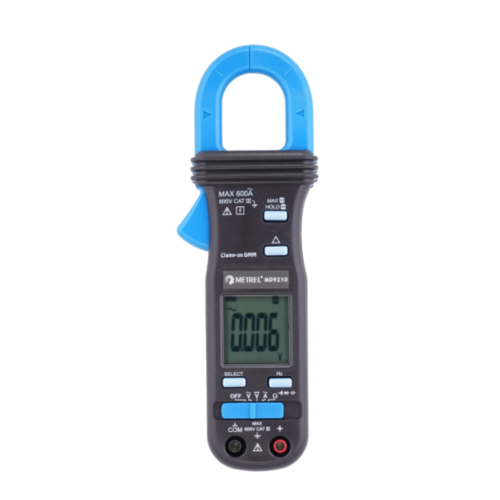

Metrel MD 9210 Standard set Clamp Meters (600.0 V; 600.0 A)

DC Voltage:

400.0 mV / ±(0.3% of reading + 4 digits)

4.000 V, 40.00 V, 400.0 V / ±(0.5% of reading + 3 digits)

600 V / ±(1.0% of reading + 4 digits)

AC Voltage (50 Hz – 500 Hz):

4.000 V, 40.00 V, 400.0 V / ±(1.5% of reading + 5 digits)

600 V / ±(2.0% of reading + 5 digits)

AC Current (50/60 Hz): 40.00 A, 400.0 A, 600 A / ±(1.5% of reading + 8 digits)

Resistance:

400.0 Ω / ±(0.8% of reading + 6 digits)

4.000 kΩ, 40.00 kΩ, 400.0 kΩ / ±(0.6% of reading + 4 digits)

4.000 MΩ / ±(1.0% of reading + 4 digits)

40.00 MΩ / ±(2.0% of reading + 4 digits)

Diode Test: Open-circuit voltage < 1.6 V DC, test current 0.25 mA

Frequency: 10 Hz … 400 Hz / ±(0.5% of reading + 4 digits)

Capacitance: 500 nF … 3000 µF / ±(3.5% of reading + 6 digits)

Power Supply: 3 V battery (IEC-CR2032)

Overvoltage Category: CAT III / 600 V

Pollution Degree: II

Dimensions (W × H × L): 63 × 32 × 190 mm

Weight: 139 g

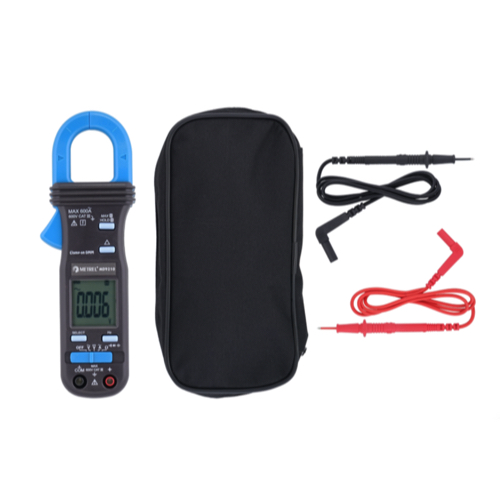

• Current clamp MD 9210

• 2 test leads

• Battery

• Pouch

• User manual

• Warranty
