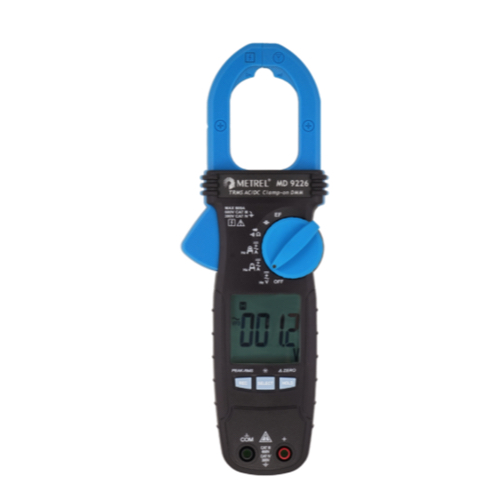

Metrel MD 9226 Standard set Clamp Meters (TRMS 600.0 V; 600.0 A)

DC Voltage: 600.0 V / ±(1.0% of reading + 5 digits)

AC Voltage (50 Hz … 60 Hz): 600.0 V / ±(1.0% of reading + 5 digits)

DC+AC Voltage (DC, 50 Hz … 60 Hz): 600.0 V / ±(1.2% of reading + 7 digits)

Audible Continuity Tester: Audible threshold between 10 Ω and 250 Ω / Response time approx. 32 ms

Resistance: 600.0 Ω, 6.000 kΩ, 60.00 kΩ / ±(1.0% of reading + 5 digits)

Capacitance: 200.0 µF, 2500 µF / ±(2.0% of reading + 4 digits)

Diode Tester: 2.000 V / ±(1.5% of reading + 5 digits)

AmpTip™ Clamp-on ACA (50 Hz … 60 Hz): 60.00 A / ±(1.5% of reading + 5 digits)

AmpTip™ Clamp-on DCA: 60.00 A / ±(2.0% of reading + 5 digits)

AmpTip™ Clamp-on DC+ACA (DC, 50 Hz … 60 Hz): 60.00 A / ±(2.0% of reading + 7 digits)

Regular Clamp-on ACA (50 Hz … 400 Hz): 60.00 A … 600.0 A / From ±(1.8% of reading + 5 digits) to ±(2.0% of reading + 5 digits)

Regular Clamp-on DCA: 60.00 A … 600.0 A / ±(2.0% of reading + 5 digits)

Regular Clamp-on DC+ACA (DC, 50 Hz … 400 Hz): 60.00 A … 600.0 A / From ±(2.2% of reading + 7 digits) to ±(2.7% of reading + 7 digits)

Hz Line Level Frequency: 5.00 Hz … 999.9 Hz / ±(1.0% of reading + 5 digits)

Non-Contact EF Detection: 20 V … 440 V / Detection frequency 50/60 Hz

Transient Protection: 6.0 kV (1.2/50 µs surge)

Power Supply: 2 × 1.5 V AAA batteries

Power Consumption: 13 mA

Dimensions: 223 × 76 × 37 mm

Weight: 234 g

Jaw Opening & Conductor Diameter: 35 mm

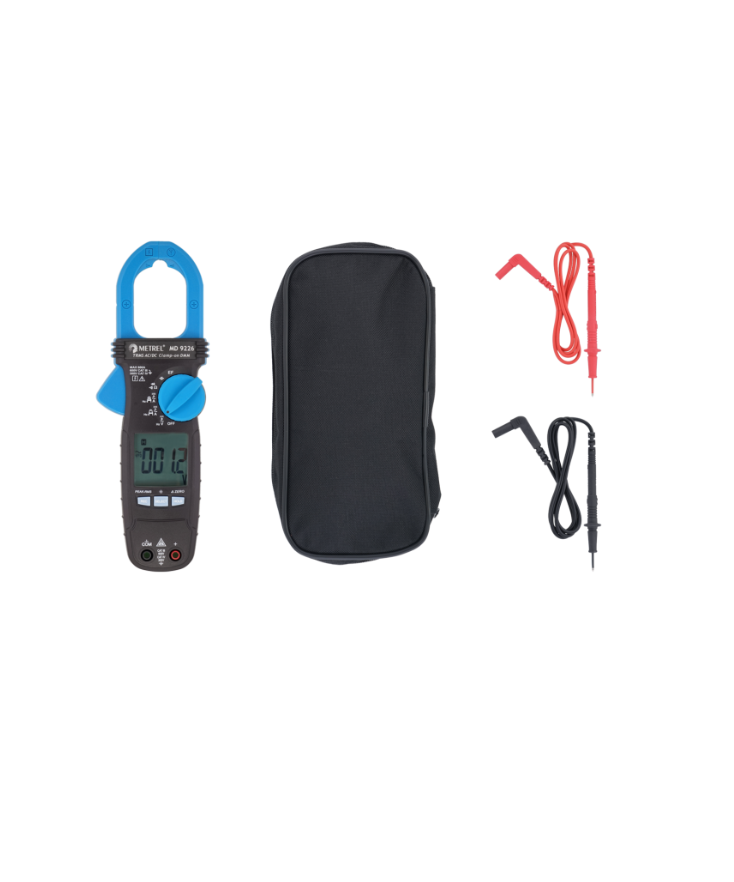

• MD 9226 Current clamp

• Test lead, 2 pcs

• Battery, 2 pcs

• Pouch, 1 pcs

• User manual
