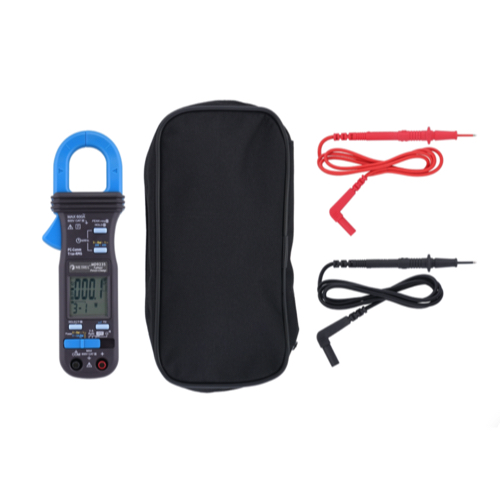

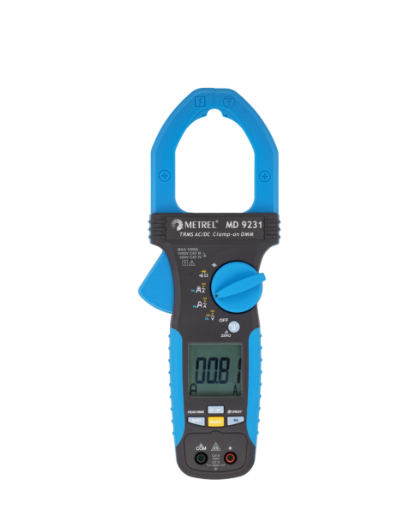

Metrel MD 9231 Clamp Meters (TRMS 1000 V; 1000 A)

DC Voltage: 600.0 V ... 1000.0 V / ±(0.8% of reading + 5 digits)

AC Voltage (50 Hz ... 400 Hz): 600.0 V ... 1000.0 V / From ±(0.8% of reading + 5 digits) to ±(10.0% of reading + 5 digits)

DC+AC Voltage (DC, 50 Hz ... 400 Hz): 600.0 V ... 1000.0 V / From ±(1.0% of reading + 7 digits) to ±(12.0% of reading + 7 digits)

Audible Continuity Tester: Audible threshold between 10 Ω and 250 Ω / Response time approx. 32 ms

Resistance: 600.0 Ω, 6.000 kΩ, 60.00 kΩ / ±(1.0% of reading + 5 digits)

Capacitance: 200.0 μF, 2500 μF / ±(2.0% of reading + 4 digits)

Diode Tester: 2.000 V / ±(1.5% of reading + 5 digits)

AmpTip™ Clamp-on DCA: 00.00 A ... 60.00 A / From ±(1.5% of reading + 5 digits) to ±(3.0% of reading + 5 digits)

AmpTip™ Clamp-on ACA (40 Hz ... 400 Hz): 00.00 A ... 60.00 A / From ±(1.5% of reading + 5 digits) to ±(3.0% of reading + 5 digits)

AmpTip™ Clamp-on DC+ACA (DC, 40 Hz ... 400 Hz): 00.00 A ... 60.00 A / From ±(2.0% of reading + 7 digits) to ±(3.0% of reading + 7 digits)

Regular Clamp-on DCA: 60.00 A ... 1000 A / ±(1.8% of reading + 5 digits)

Regular Clamp-on ACA (40 Hz ... 400 Hz): 60.00 A ... 1000 A / From ±(1.8% of reading + 5 digits) to ±(2.2% of reading + 5 digits)

Regular Clamp-on DC+ACA (DC, 40 Hz ... 400 Hz): 60.00 A ... 1000 A / From ±(2.2% of reading + 7 digits) to ±(2.5% of reading + 7 digits)

Hz Line Level Frequency: 5.00 Hz ... 999.9 Hz / ±(1.0% of reading + 5 digits)

Non-Contact EF Detection: 20 V ... 440 V / Detection frequency 50/60 Hz

Transient Protection: 8.0 kV (1.2/50 µs surge)

Power Supply: 2 × 1.5 V AAA batteries

Dimensions: 258 × 94 × 44 mm

Weight: 392 g

Jaw Opening & Conductor Diameter: 51 mm max
